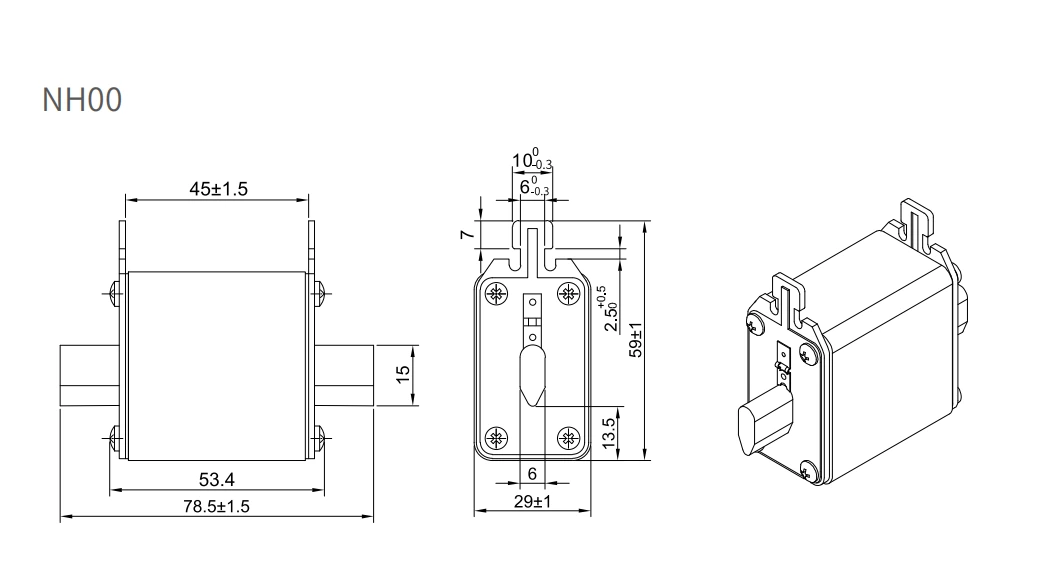

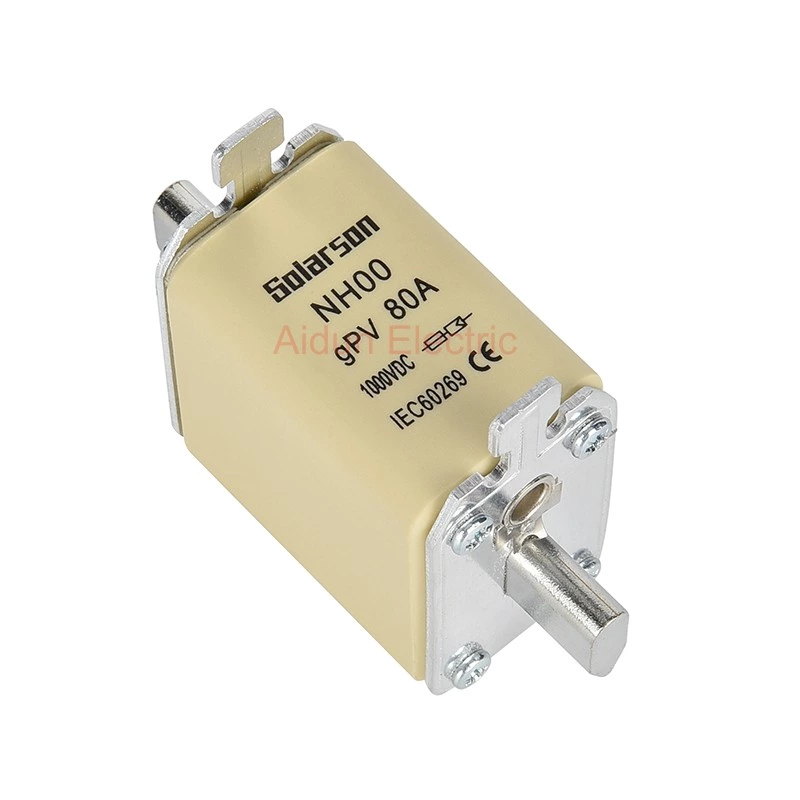

1000VDC NH00 size Solar PV fuse 32A,40A,50A,63A,80A,100A,125A,160A gPV
Yueqing Aidun Electrical produce “SOLARSON”brand NH00 size 1000VDC Solar PV Fuse and base are for protecting solar systerm, high cycling and low fault current conditions (reverse current, multi-array fault) string arrays. Four styles available for application flexibility.
□ According to IEC/EN60269-6
□ Rated current： 32A,40A,50A,63A,80A,100A,125A,160A
□ Rated voltage： 1000V DC
□Rated breaking capacity：DC 50kA
□ Operating class gPV and UL PV fuse link for Solar protection
