KTK-R Class CC 600Vac Fast Acting Fuses

KTK-R Class CC 600Vac Fast Acting Fuses

FNQ-R Class CC 600Vac Time-delay Fuses

China  Aidun Electrical produce “SOLARSON” brand   Advanced protection KTK-R Class CC current-limiting,fast-acting fuses.Provides 10X better current limitation to help prevent equipment damage caused by short circuit events.

Fast-acting fuse helps prevent equipment damage caused by short-circuit events.

that meets most protection requirements up to 30A.

  • Catalog Symbol: KTK-R
  • current-limiting, fast-acting fuses.
  • Ampere Rating: 0.25,0.5A,1A,2A,3A,4A,.5A,6A,8A,10A,12A,15A,20A,25A 30A
  • Voltage Rating: 600Vac (or less) 3 00Vdc (or less)
  • Interrupting Rating: 200,000A RMS Sym.
  • Standard:UL . 248-4
Item No. Product type ФD×L Rated Voltage (V) Rated current (A)   Drawing Weight (g)
180921 R015T Ф10.3×38 380/600 0.25~32 Drawing 2 7.5

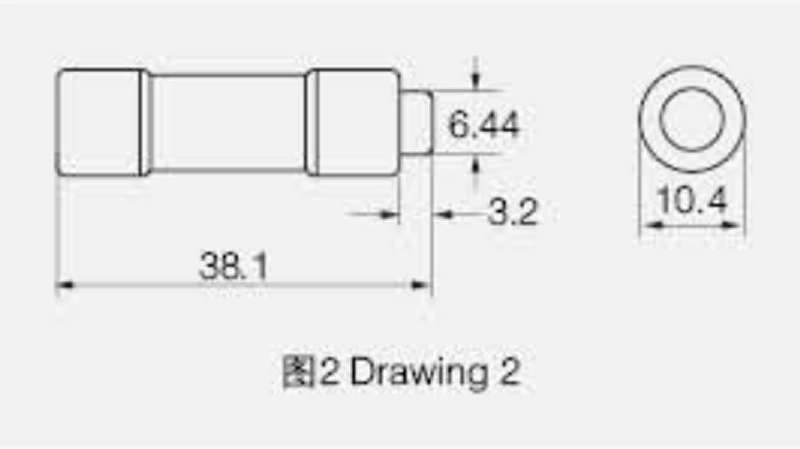

Dimension:
