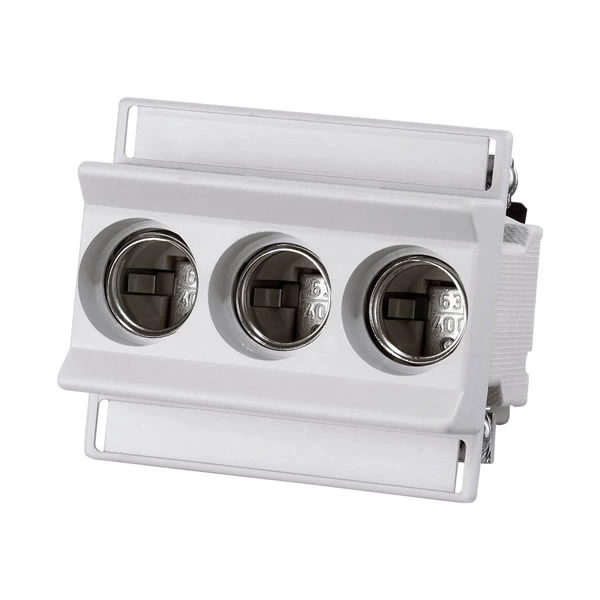

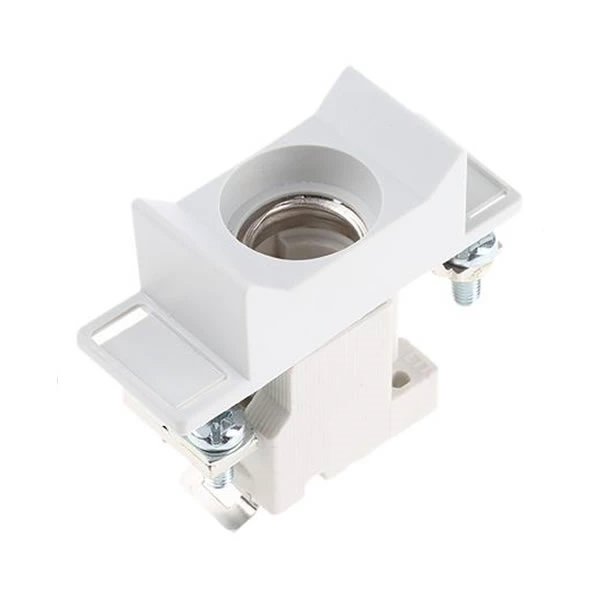

D02 Ceramic Fuse Holder 63A
Product description
China Aidun Electrical produce “SOLARSON” brand D and D0 fuse links are specifically designed for the protection of general industrial applications such as power distribution and cable protection. Both types D and D0 are available in three operating characteristics: Time-delay, Fast-acting and Ultra-rapid versions that fit into screw cap fuse link carriers for mounting in 1- or 3-pole DIN-Rail or screw fixing.
Technical data
- Voltage: 400/500 V a.c.
- Ampere Rating of fuses:30A,35A,40A,50A,63A
- Breaking capacity: 50 kA
- Operating class :gL/gG,aR,time delay
- Standards：IEC/EN60269 and DIN 49515
