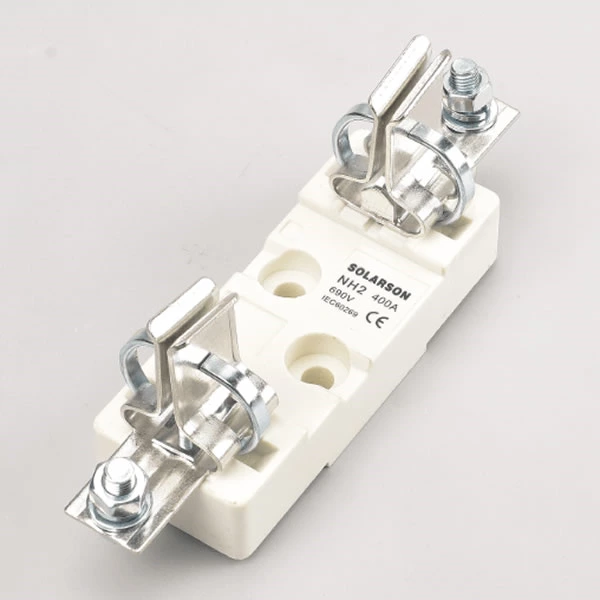

China Fuse Manufacturer Aidun Electric produce  "Solarson" brand  HRC NH2 Ceramic Fuse Base 500V 690V 400A used for NH2 and NT2 fuse.

Technical Data:

Rated Voltage:500/690V

Rated Currents:40A,50A,63A,80A,100A,125A,135A,150A,160A,200A,250A,315A,355A,400A

Breaking Capacity:500V-120kA,690V-80kA

Function Level:gG/gL\gtr\aM\gM\aR

Standard:IEC50269,DIN43620,VDE 0636

No.

Product type

Compatible Fuse Link Size

Rated Voltage (V)

Rated current (A)

Overall dimension (mm)

A

B

D

E

H

Φd

18033

NH1

RT16-1 NT1 NH1

500/690

250

200

175

58

30

84

10.5

18034

NH2

RT16-2 NT2 NH2

500/690

400

225

200

60

30

100

10.5

18035

NH3

RT16-3 NT3 NH3

500/690

630

250

210

60

30

105

10.5

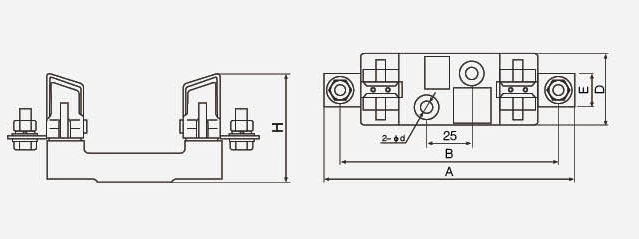

Dimension
