China Aidun Electric "Solarson" brand HRC NH00 Steel Fuse Base 500V 690V 250A used for NH1,NT1 fuse link

Technical Data:

Rated Voltage:500/690V

Rated Amps :250A

Breaking Capacity:500V-120kA,690V-80kA

Function Level:gG/gL\gtr\aM\gM\aR

Standard:IEC50269,DIN43620,VDE 0636

No.

Product type

Compatible Fuse Link Size

Rated Voltage (V)

Rated current (A)

Overall dimension (mm)

A

B

D

E

H

18039

NT1

RT16-1 NT1 NH1

500/690

250

175

200

50

30

82

18040

NT2

RT16-2 NT2 NH2

500/690

400

200

230

64

30

104

18041

NT3

RT16-3 NT3 NH3

500/690

630

210

250

64

30

120

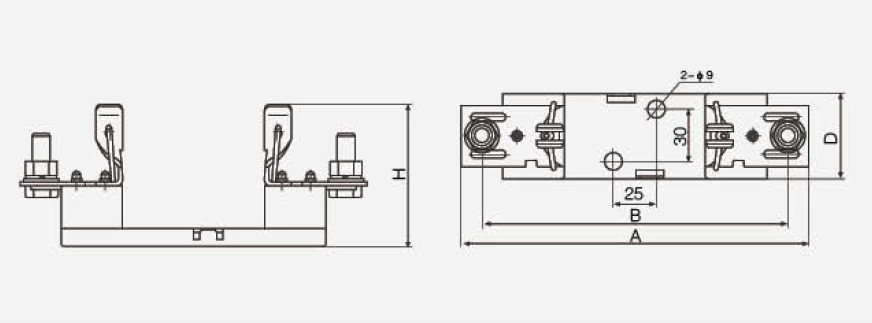

Dimension
