HRC NH00 Fuse Base 500V 690V 160A 3P

HRC NH00 Fuse Base 500V 690V 160A 3P
HRC NH00 Fuse Base 500V 690V 160A 3P HRC NH00 Fuse Base 500V 690V 160A 3P

HRC NH00  Fuse Base 500V 690V 160A 3P

Technical Data:

Rated Voltage:500/690V

Rated Amps:160A

Breaking Capacity:500V-120kA,690V-80kA

Function Level:gG/gL\gtr\aM\gM\aR

Standard:IEC50269,DIN43620,VDE 0636

No.

Product type

Compatible Fuse Link Size

Rated Voltage (V)

Rated current (A)

180301

NT00

NH000 NH00

500/690

160

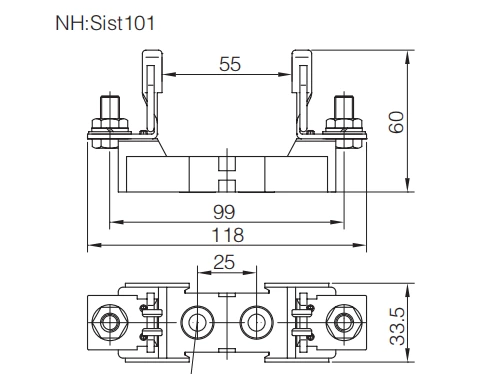

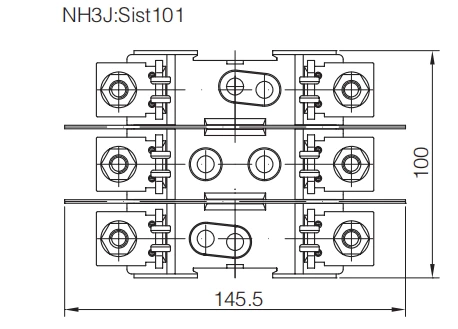

Dimension:
