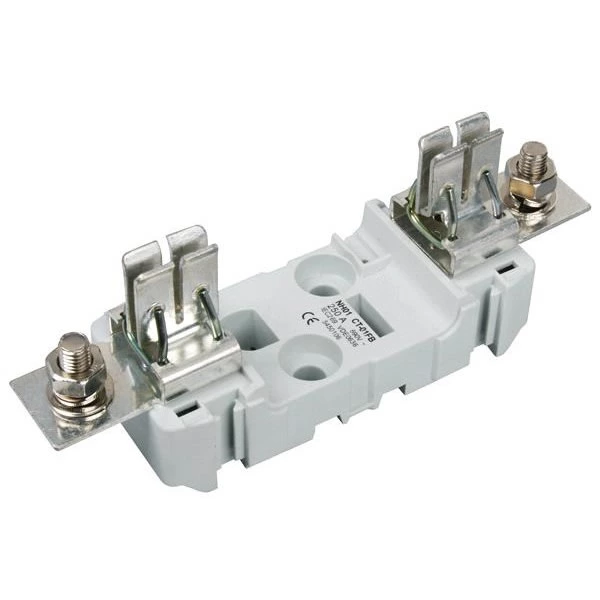

HRC NH3 Plastic Fuse Base 500V 690V 630A
Technical Data:
Rated Voltage:500/690V
Rated Currents of fuses:Rated Amps:200A,250A,315A,355A,400A,500A,630A
Breaking Capacity:500V-120kA，690V-80kA
Function Level:gG/gL\gtr\aM\gM\aR
Standard:IEC50269,DIN43620,VDE 0636
|
No. |
Product type |
Compatible Fuse Link Size |
Rated Voltage (V) |
Rated current (A) |
Overall dimension (mm) |
||||
|
A |
C |
D |
E |
H |
|||||
|
18027 |
NH1 |
RT16-1 NT1 NH1 |
500/690 |
250 |
208 |
176 |
58 |
32 |
82 |
|
18028 |
NH2 |
RT16-2 NT2 NH2 |
500/690 |
400 |
224 |
192 |
58 |
35 |
89 |
|
18029 |
NH3 |
RT16-3 NT3 NH3 |
500/690 |
630 |
239 |
207 |
58 |
40 |
106 |

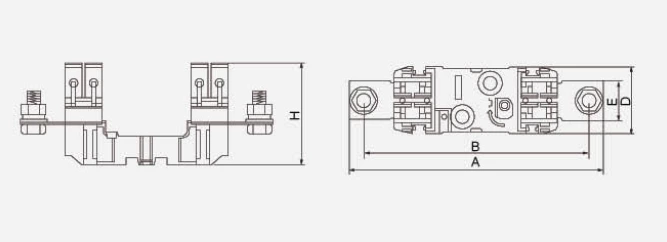

Dimension
