3.6KV oil tight Fuses OEFGMA for use in Oil Switchgear 63.5X254MM 6.3A,10A,16A,20A,32A,40A,50A,63A,80A,100A,125A,160A,200A,250A

Inquiry
3.6KV oil tight Fuses OEFGMA for use in Oil Switchgear 63.5X254MM 6.3A,10A,16A,20A,32A,40A,50A,63A,80A,100A,125A,160A,200A,250A
3.6KV oil tight Fuses OEFGMA for use in Oil Switchgear 63.5X254MM 6.3A,10A,16A,20A,32A,40A,50A,63A,80A,100A,125A,160A,200A,250A 3.6KV oil tight Fuses OEFGMA for use in Oil Switchgear 63.5X254MM 6.3A,10A,16A,20A,32A,40A,50A,63A,80A,100A,125A,160A,200A,250A

3.6KV oil tight Fuses OEGMA for use in Oil Switchgear 63.5X254MM 6.3A,10A,16A,20A,32A,40A,50A,63A,80A,100A,125A,160A,200A,250A

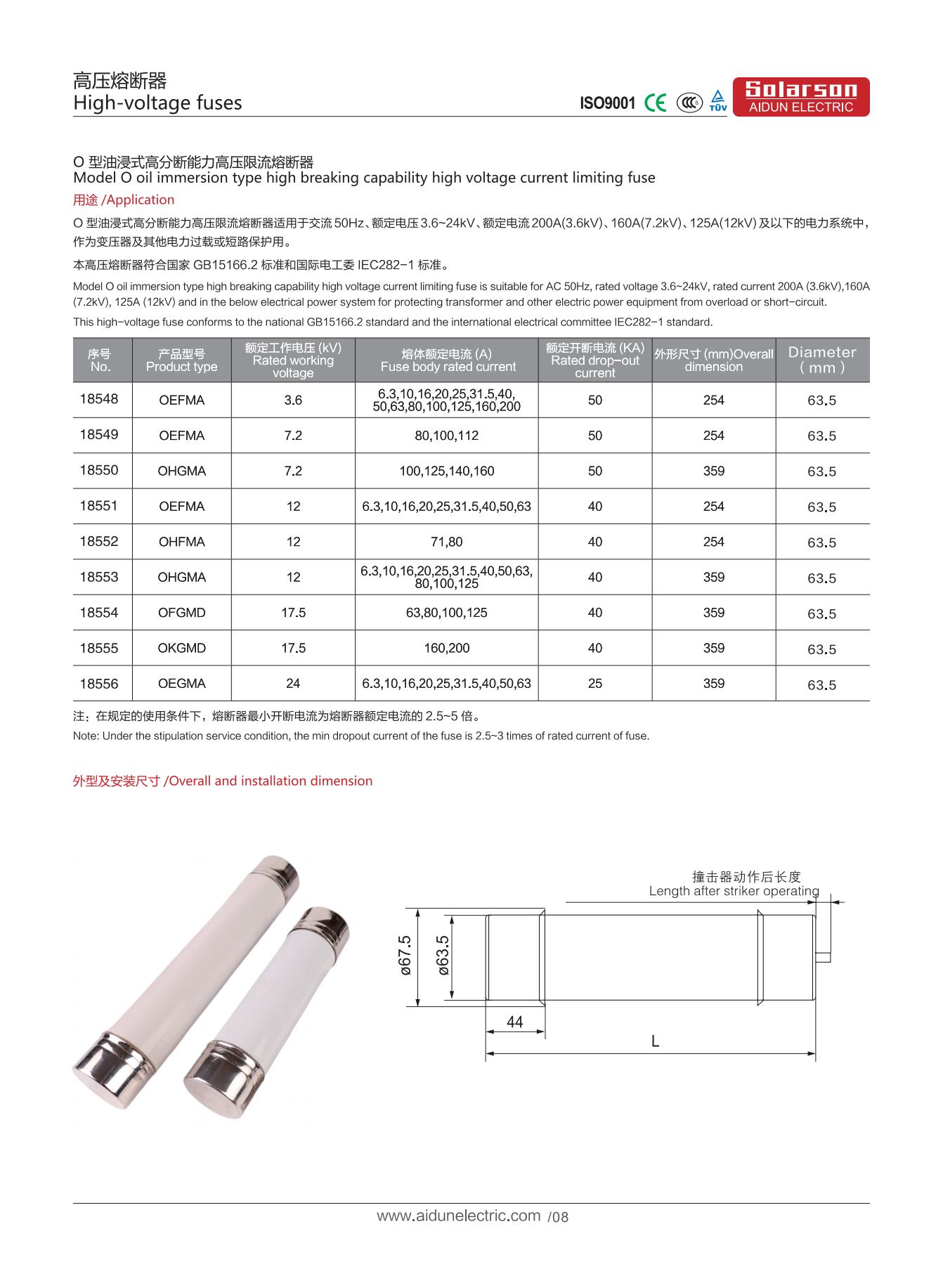

China Aidun Electric “Solarson” Brand 3.6KV High Voltage Fuses OEFMA for use in Oil Switchgear comply with IEC 282-1, BS2692-1 and ESI Standard 12-8.

Voltage ranges 3.6 to 24kV.

Fitted with powerful pyrotechnic striker pin.

Technical data

  • Ampere Rating: 6.3A,10A,16A,20A,32A,40A,50A,63A,80A,100A,125A,160A,200A,250A
  • Voltage Rating: 3.6KV
  • Breaking capacity: 31.5kA.
  • Dia:63.5MM,Length:254MM
  • Standard:IEC60282,EN60282,IEC 282-1,BS2692-1
