12KV Oil tight Fuses OHGMA for use in Oil Switchgear 6.3A,10A,16A,20A,32A,40A,50A,63A,80A 63.5X359MM

Inquiry
12KV Oil tight Fuses OHGMA for use in Oil Switchgear 6.3A,10A,16A,20A,32A,40A,50A,63A,80A 63.5X359MM
12KV Oil tight Fuses OHGMA for use in Oil Switchgear 6.3A,10A,16A,20A,32A,40A,50A,63A,80A 63.5X359MM 12KV Oil tight Fuses OHGMA for use in Oil Switchgear 6.3A,10A,16A,20A,32A,40A,50A,63A,80A 63.5X359MM 12KV Oil tight Fuses OHGMA for use in Oil Switchgear 6.3A,10A,16A,20A,32A,40A,50A,63A,80A 63.5X359MM

12KV Oil tight  Fuses OHGMA  for use in Oil Switchgear 6.3A,10A,16A,20A,32A,40A,50A,63A,80A,100A,125A 63.5X254MM

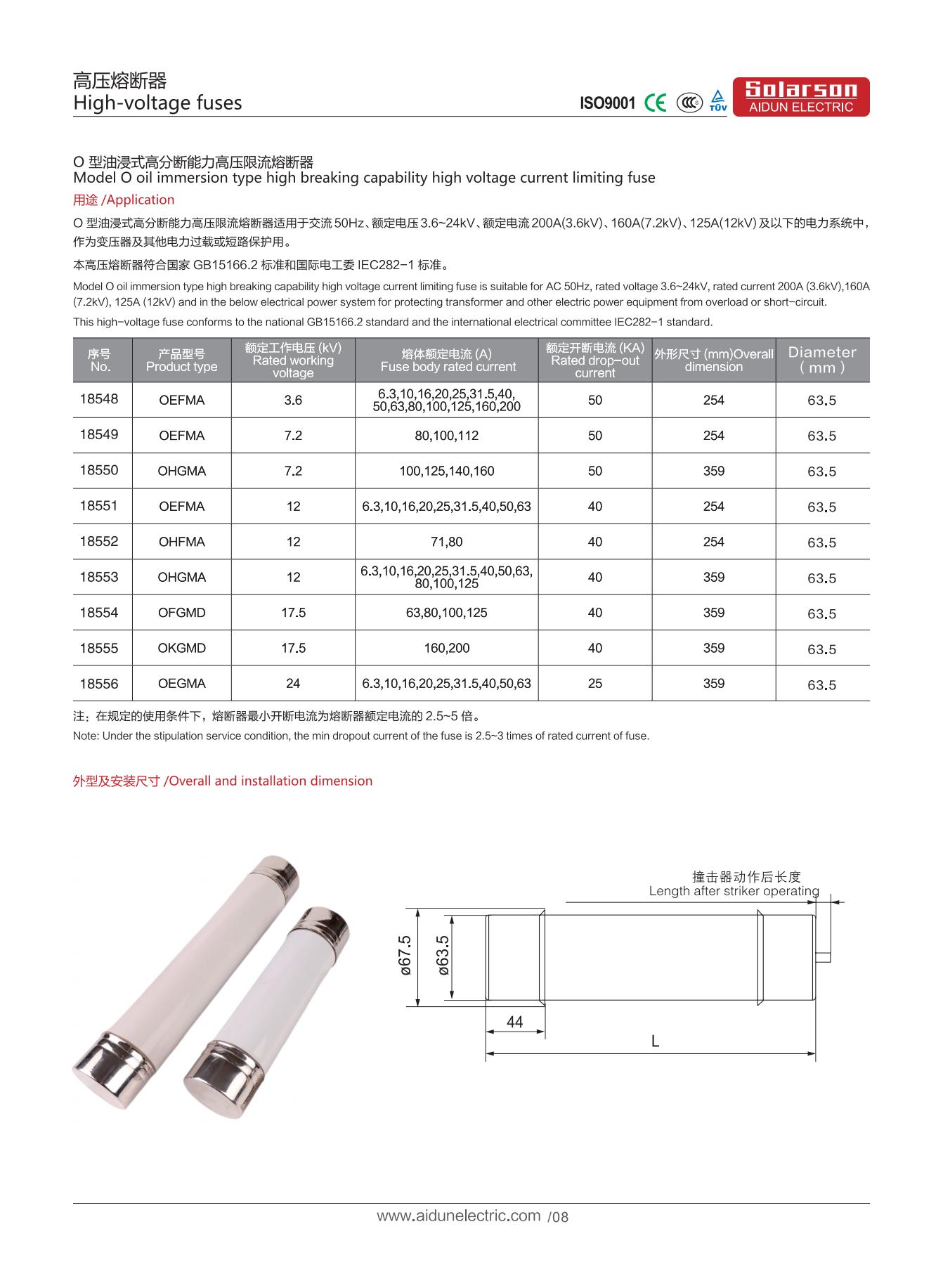

China Aidun Electric “Solarson” Brand 12KV  High Voltage Fuse  OEFMA OHFMA for use in Oil Switchgearcomply with IEC 282-1, BS2692-1 and ESI Standard 12-8.

Voltage ranges 3.6 to 24kV.

Fitted with powerful pyrotechnic striker pin.

Technical data

  • Ampere Rating:  6.3A,10A,16A,20A,32A,40A,50A,63A,80A,100A,125A
  • Voltage Rating: 12KV
  • Breaking capacity: 40kA.
  • Standard:IEC60282,EN60282,IEC 282-1,BS2692-1
No. Products model Rated Voltage (kV) Rated  current (A) Breaking capacity (kA) Length mm
18428 OEFMA 3.6 6.3,10,16,20,25,31.5,40,50,63,80,100,125,160,200 50 254
18429 OEFMA 7.2 80,100,112 50 254
18430 OHGMA 7.2 100,125,140,160 50 359
18431 OEFMA 12 6.3,10,16,20,25,31.5,40,50,63 40 254
18432 OHFMA 12 71,80 40 254
18433 OHGMA 12 6.3,10,16,20,25,31.5,40,50,63,80,100,125 40 359
18434 OFGMD 17.5 63,80,100,125 40 359
18435 OKGMD 17.5 160,200 40 359
18436 OEGMA 24 6.3,10,16,20,25,31.5,40,50,63 25 359
