7.2KV HRC Medium Voltage Fuses

China Fuse Manufacturer Aidun Electric produce "Solarson" brand 7.2KV HRC Medium Voltage Fuses for Transformer Protection Comply with DIN Dimensional.Suitable for indoor and outdoor use ,the produces made in China good quality with good price.
Rated Voltage:7.2KV
Rated Currents:6.3A,10A,16A,20A,25A,31.5A,40A,50A,63A,80A,100A,125A,135A
Model:
XRNT 7.2KV
Contact Now
7.2KV HRC Medium Voltage Fuses

7.2KV HRC  Medium Voltage Fuses  for Transformer Protection

Description:

 China Fuse Manufacturer Aidun Electric produce  "Solarson" brand A range of 7.2KV HRC  Medium Voltage Fuses  for Transformer Protection  with striker, suitable for transformer protection.The fuses can be used even when there is no secondary low voltage protection, provided they are used with fuse switches fitted with instantaneous striker tripping.

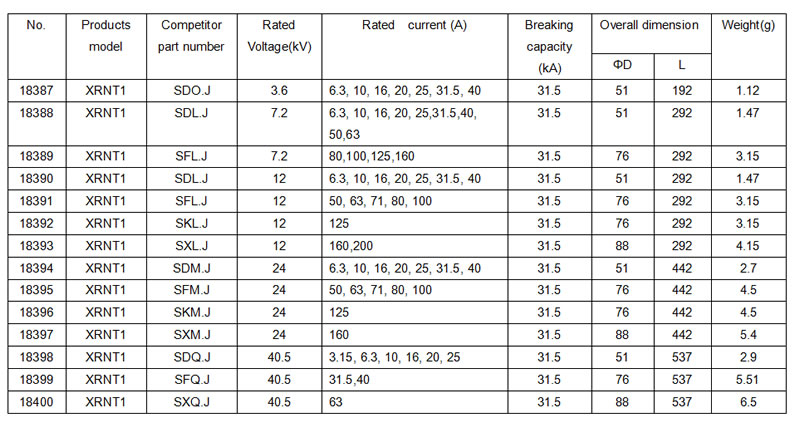

Technical Data:

  • Rated Voltage:3.6KV,7.2KV,12KV,24KV,36KV,40KV
  • Rated Currents:6.3A,10A,16A,20A,25A,31.5A,40A,50A,63A,80A,100A,125A,135A,150A,160A,200A
  • Breaking Capacity:50kA
  • Standard:IEC60282,DIN 43625, VDE 0670
  • Agency Information: Comply with DIN Dimensional.Suitable for indoor and outdoor use.

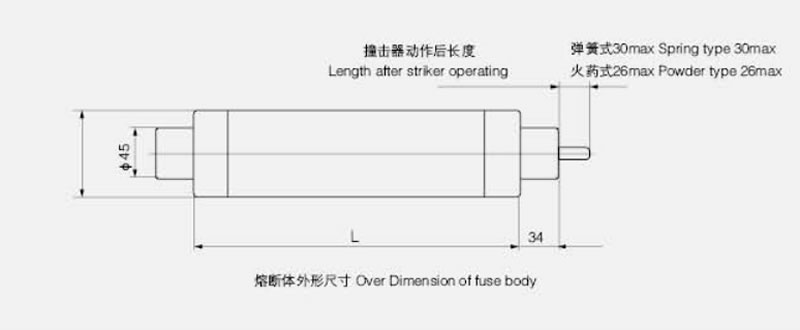

Dimension:
