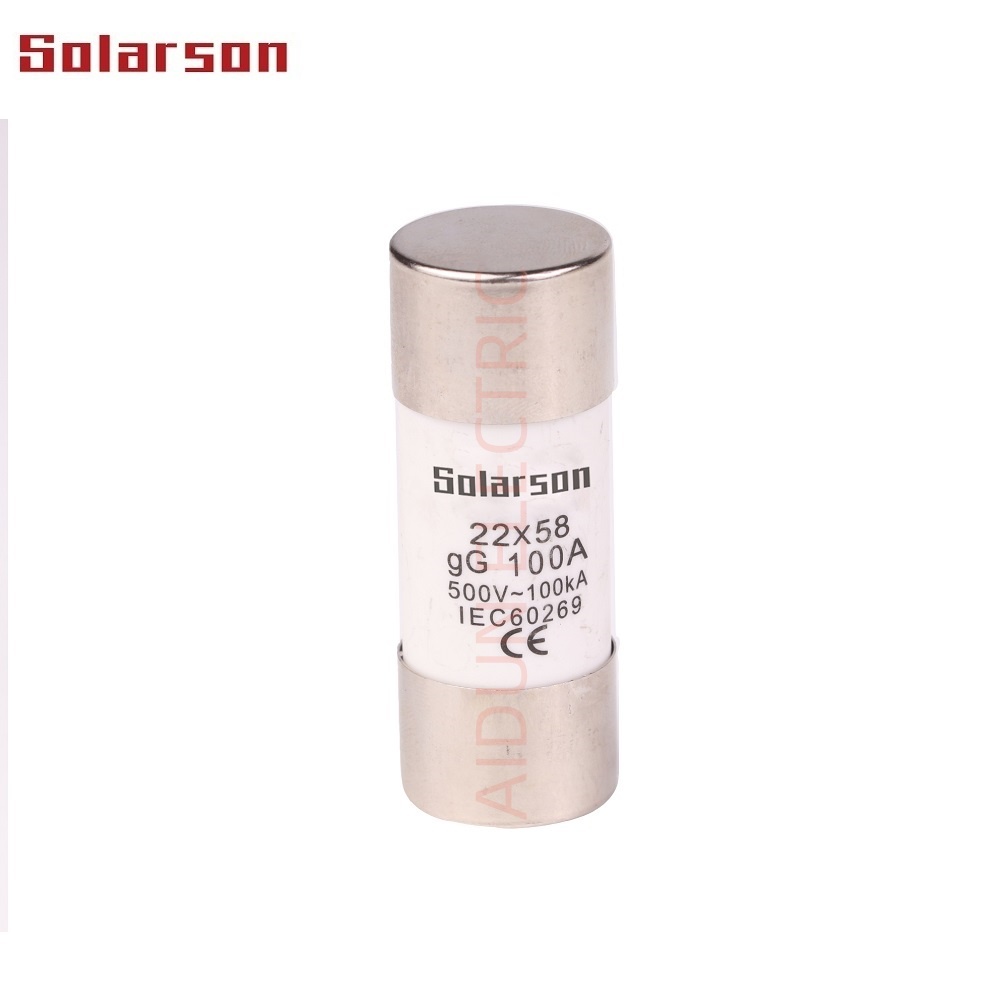

ME House Service Cut-Out Fuse-Link 22x58mm Cylindrical Fuse link 415V type IIa16A,20A,25A,30A,35A,40A,50A,63A,80A,100A ,125A gL/gG
ME House Service Cut-Out Fuse-Link 22x58mm Cylindrical Fuse link 415V type IIa16A,20A,25A,30A,35A,40A,50A,63A,80A,100A ,125A gL/gG
China Aidun Electric “Solarson” Brand IEC 22x58mm Cylindrical Fuse IIa 500V 690V up to 125A class gG/ gL and aM fuse links are suitable for industrial applications.
Technical data
- Ampere Rating: 10A,12A,15A,16A,20A,25A,30A,35A,40A,50A,63A,80A,100A,125A
- Voltage Rating: 415Vac/500VAC/690VAC
- Breaking capacity: 120kA.
- Standard:IEC60269,EN60269
| Item No. | Product type | ФD×L | Rated Voltage (V) | Rated current (A) | Drawing | Weight (g) |
| 18080 | ME | Ф22×58 | 380/500/690 | 10~125 | Drawing 1 |

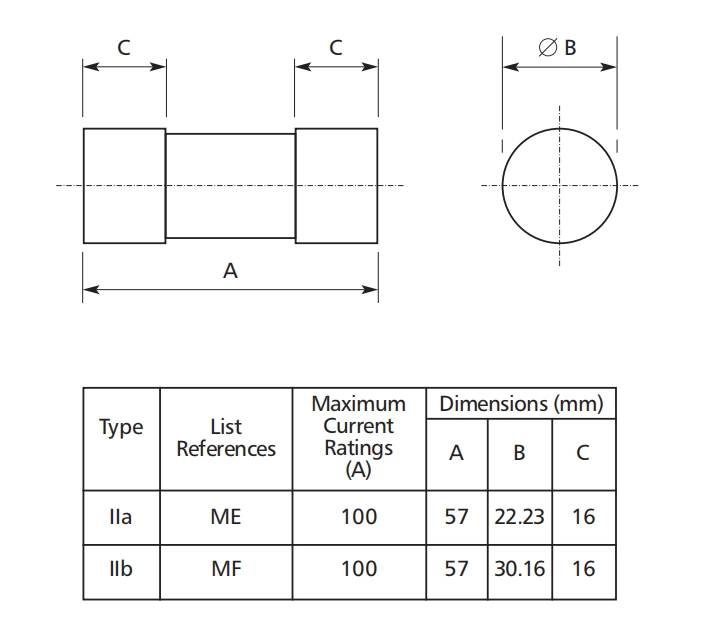

Dimension:
