10X38 14X51 22X58 Modular Fuse Holder 500VAC 690VAC

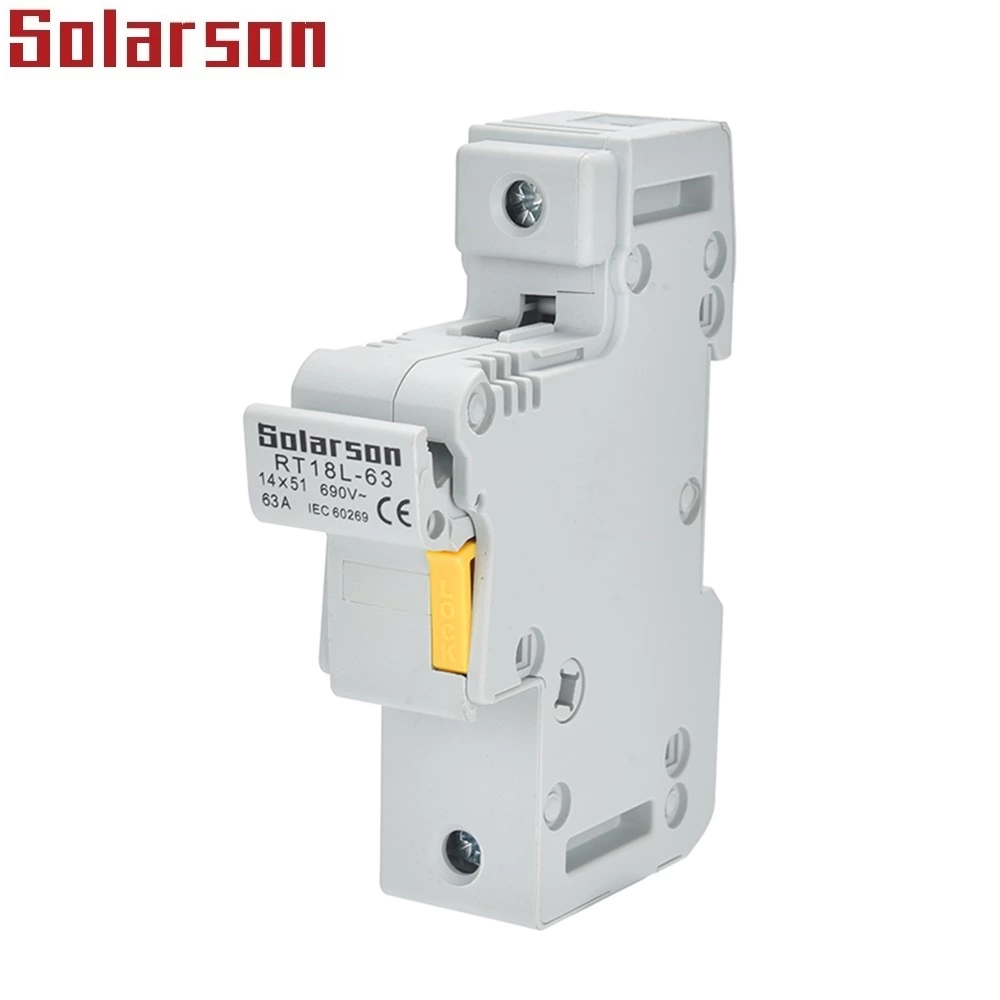

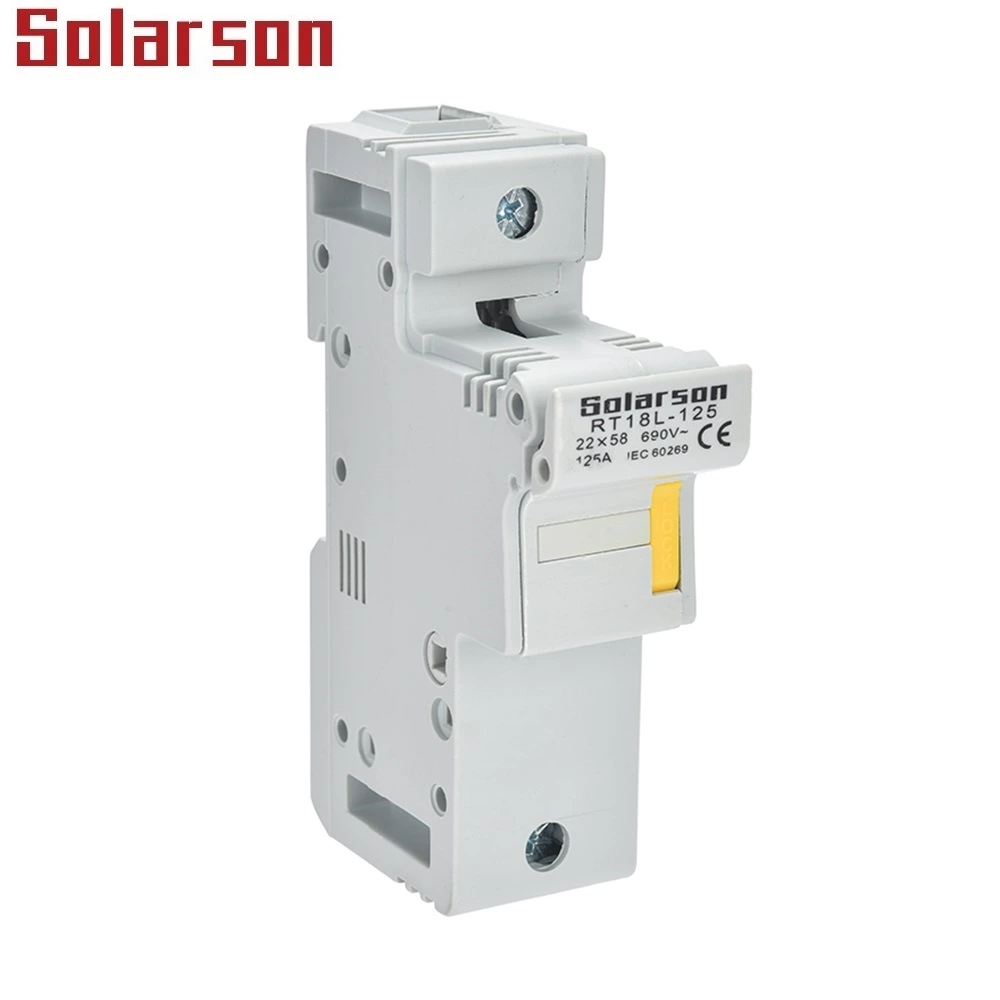

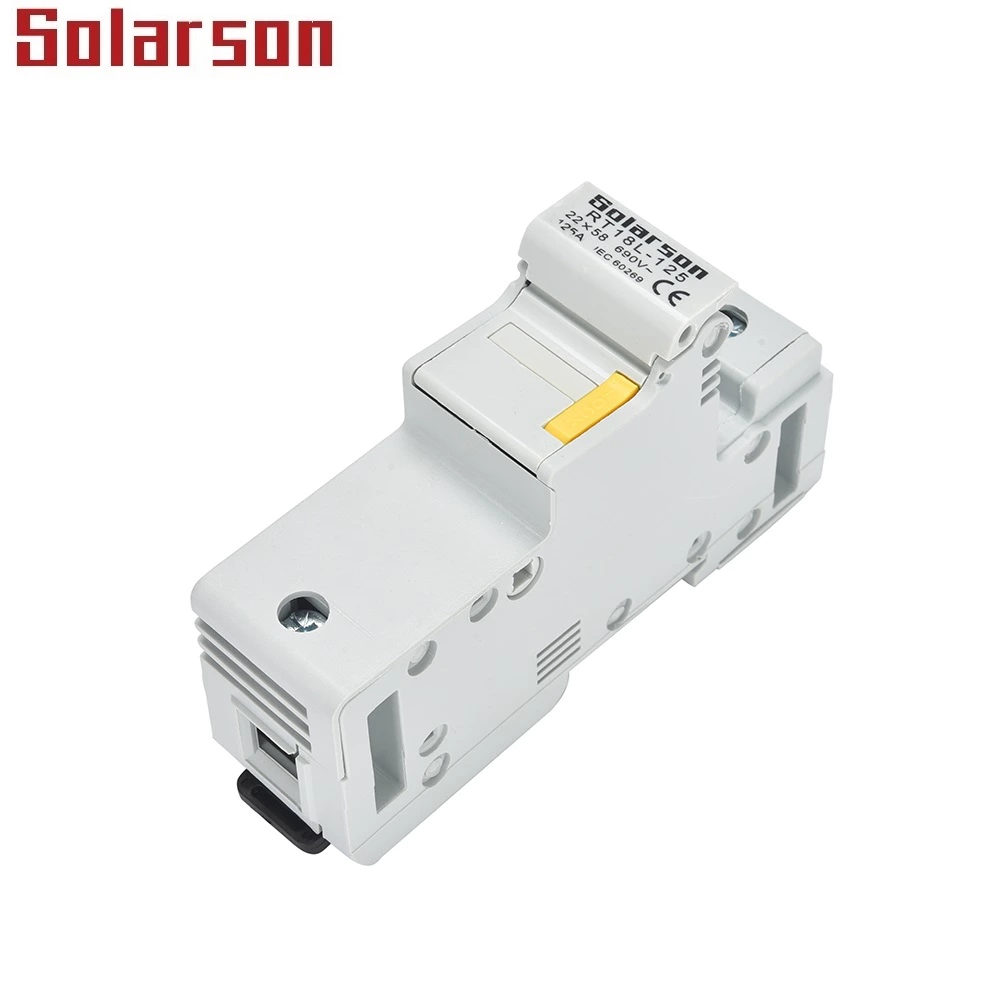

China Aidun Electric "Solarson" brand 10x38mm 10X38 14X51 22X58 Modular Fuse Holder are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in IEC version or IEC + UL version.
Technical data
- Rated current of fuse：1A to 125A
- Rated voltage:500VAC 690VAC 500V DC
- Rated breaking capacity：120kA
- Operating class :gL/gG,aR,time delay,aM
- According to IEC/EN60269-6 IEC 60947-3 and UL248
| No. | Product type | Compatible Fuse Link Size | Rated Voltage(V) | Rated current(A) | Overall dimension (mm) | ||||
| A1 | A2 | B | H1 | H2 | |||||
| 18116 | RT18-20X | 8.5×31.5 | 500/690 | 20 | 80 | 82 | 18 | 60 | 78 |
| 18117 | RT18-32 | 10×38 | 500/690 | 32 | 79 | 81 | 18 | 61 | 80 |
| 18118 | RT18-32X | 10×38 | 500/690 | 32 | 79 | 81 | 18 | 61 | 80 |
| 18119 | RT18-63 | 14×51 | 500/690 | 63 | 103 | 105 | 27 | 80 | 110 |
the fuse type with X,is means the fuse holder is with indicator or LED light.

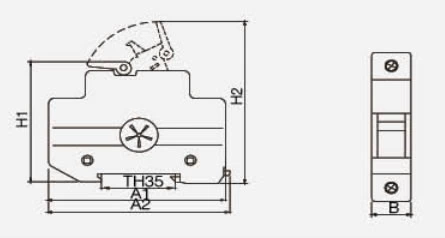

Dimension:

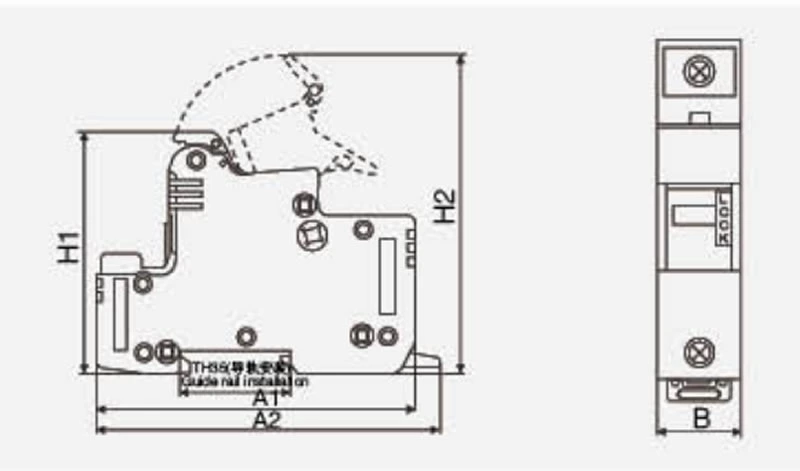

| No. | Product type | Compatible Fuse Link Size | Rated Voltage(V) | Rated current(A) | Overall dimension (mm) | ||||
| A1 | A2 | B | H1 | H2 | |||||
| 18121 | RT18L-63 | 14×51 | 500/690 | 63 | 108 | 115 | 27 | 78 | 100 |
| 18122 | RT18L-125 | 22×58 | 500/690 | 125 | 126 | 134 | 36 | 78 | 104 |
