DP-88 Split Core Current Transformer  CT Primary current: 500A 500A 600A 750A 800A 1000A 1200A 1250A 1500A,Rated output: 1A,5A,Accuracy Class 0.5  1.0

Description

The DP series split core current transformer has been specially designed to facilitate their installation in new or already existing net works.They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side current to pass cables or bus-bar through the transformer core to connect such cables to the primary terminals.

Features

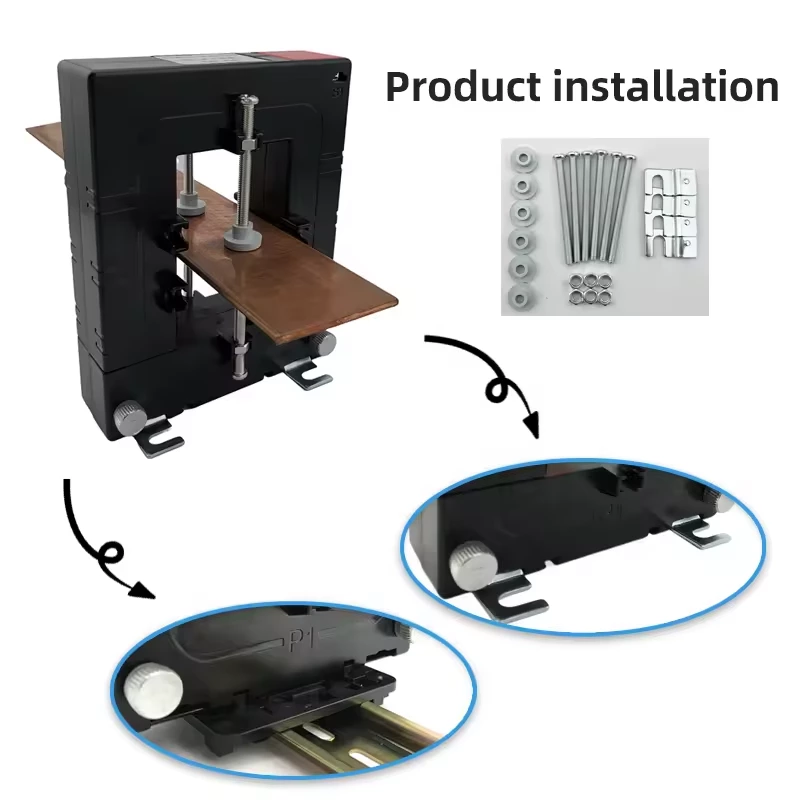

Two built in fixing methods: panel/busbar

Very easy to install

Wide inner window,allowing clamping of big cables or bus-bars

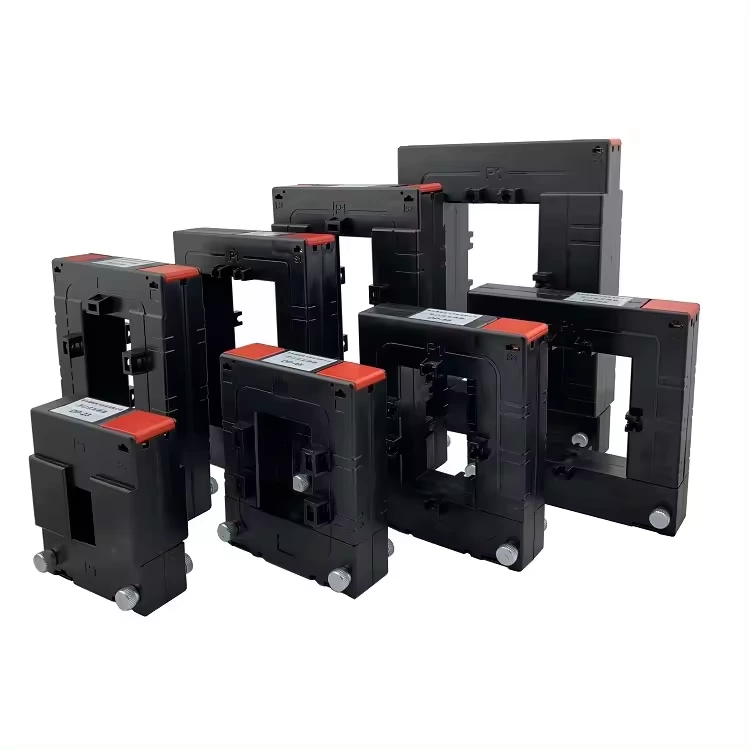

Wide range of sizes to accommodate all the existing installation

Primary current: 500A 500A 600A 750A 800A 1000A 1200A 1250A 1500A

Rated output:1A,5A

Accuracy Class 0.5, 1.0



Standard

IEC60044-1, IEC61869-1, IEC61869-2
