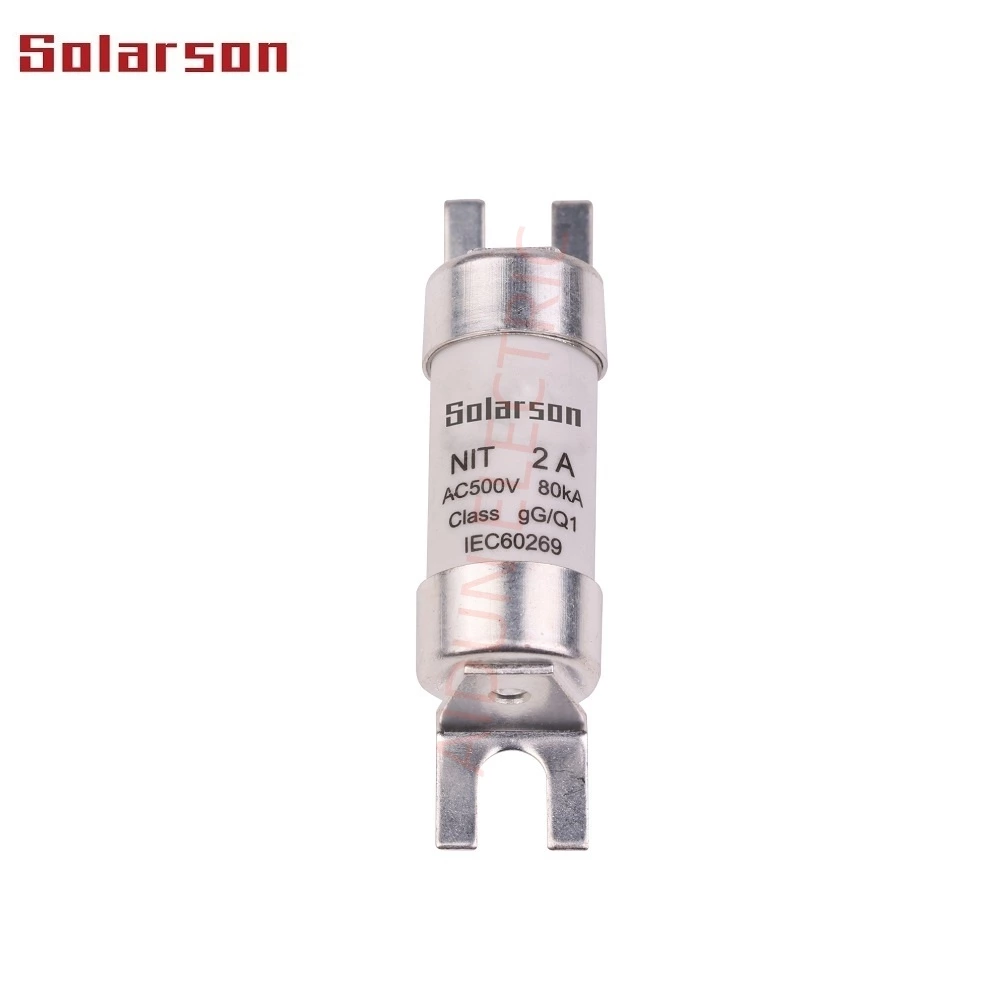

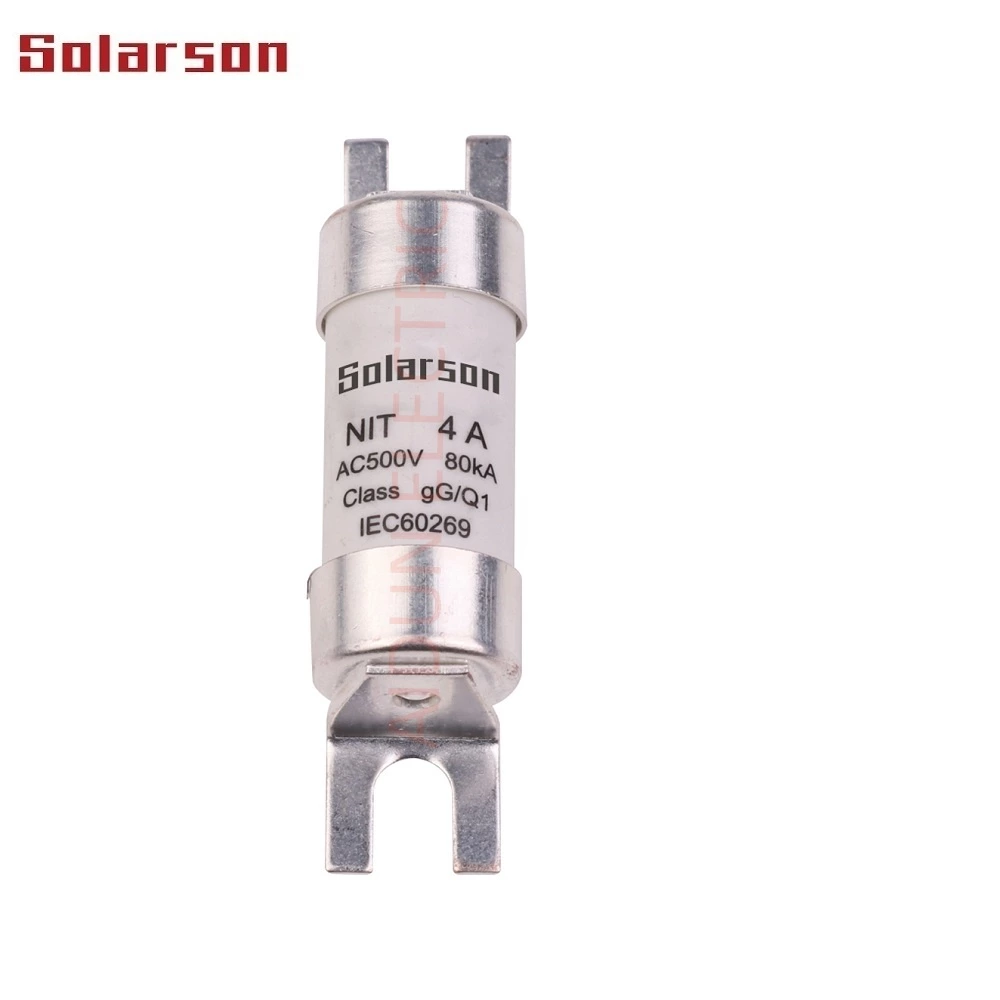

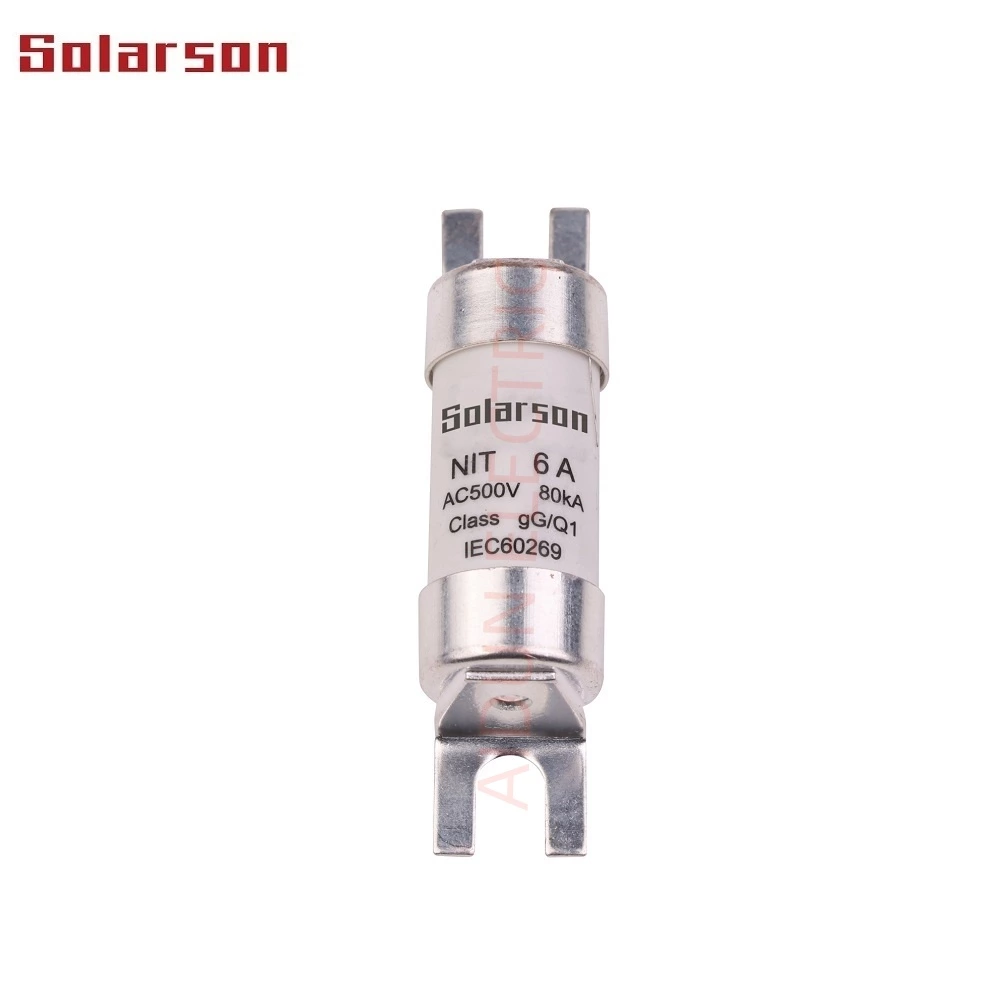

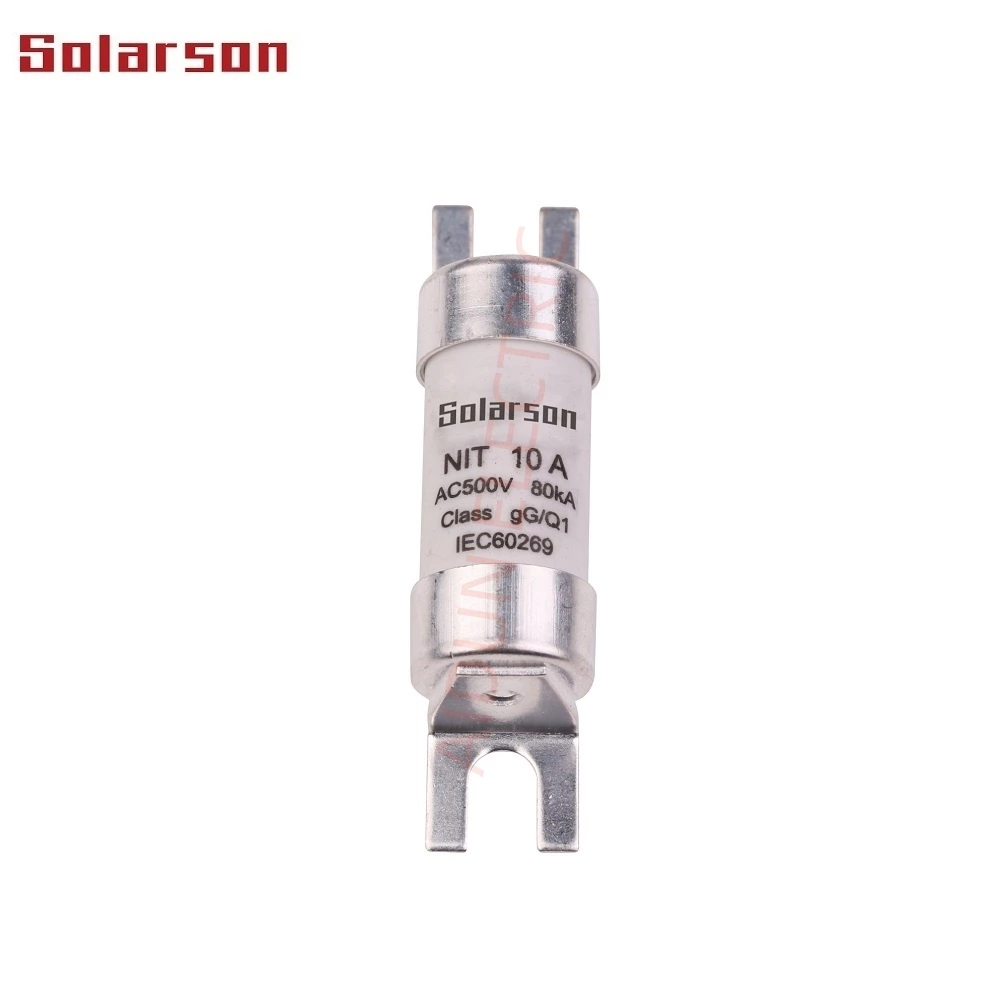

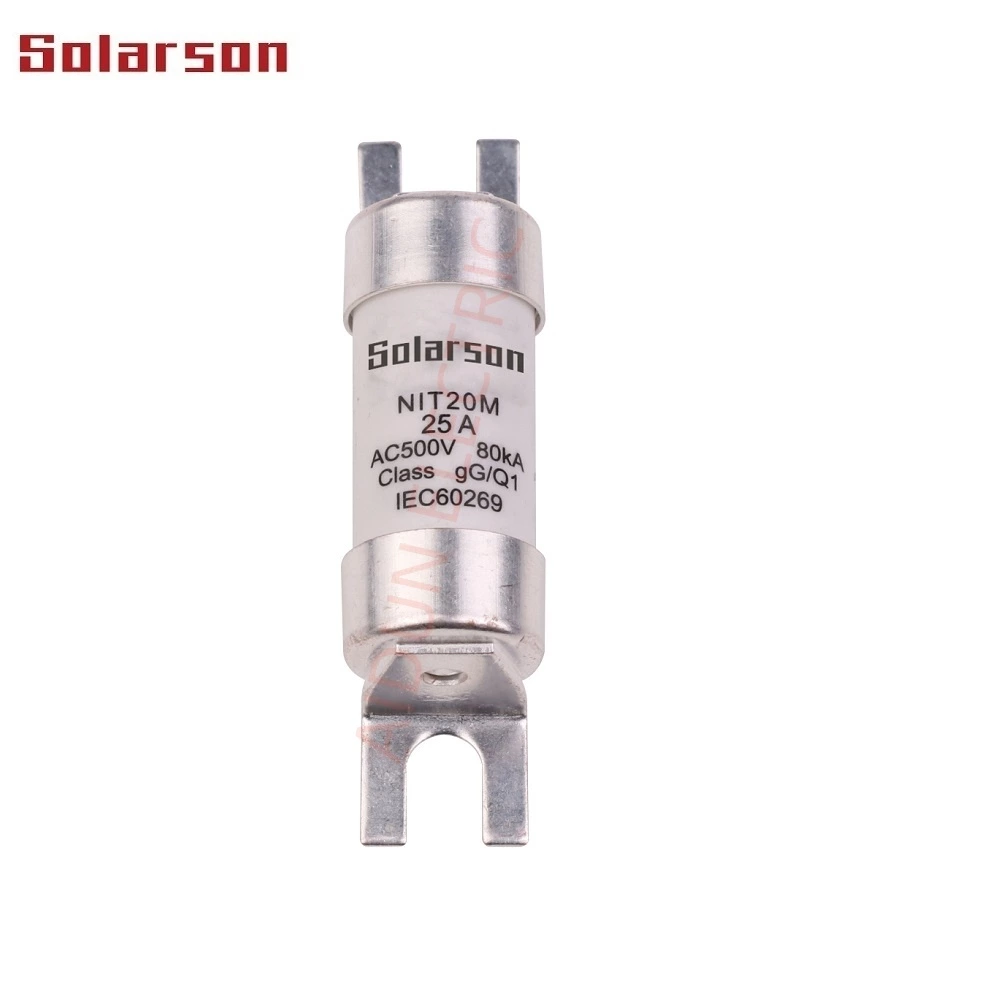

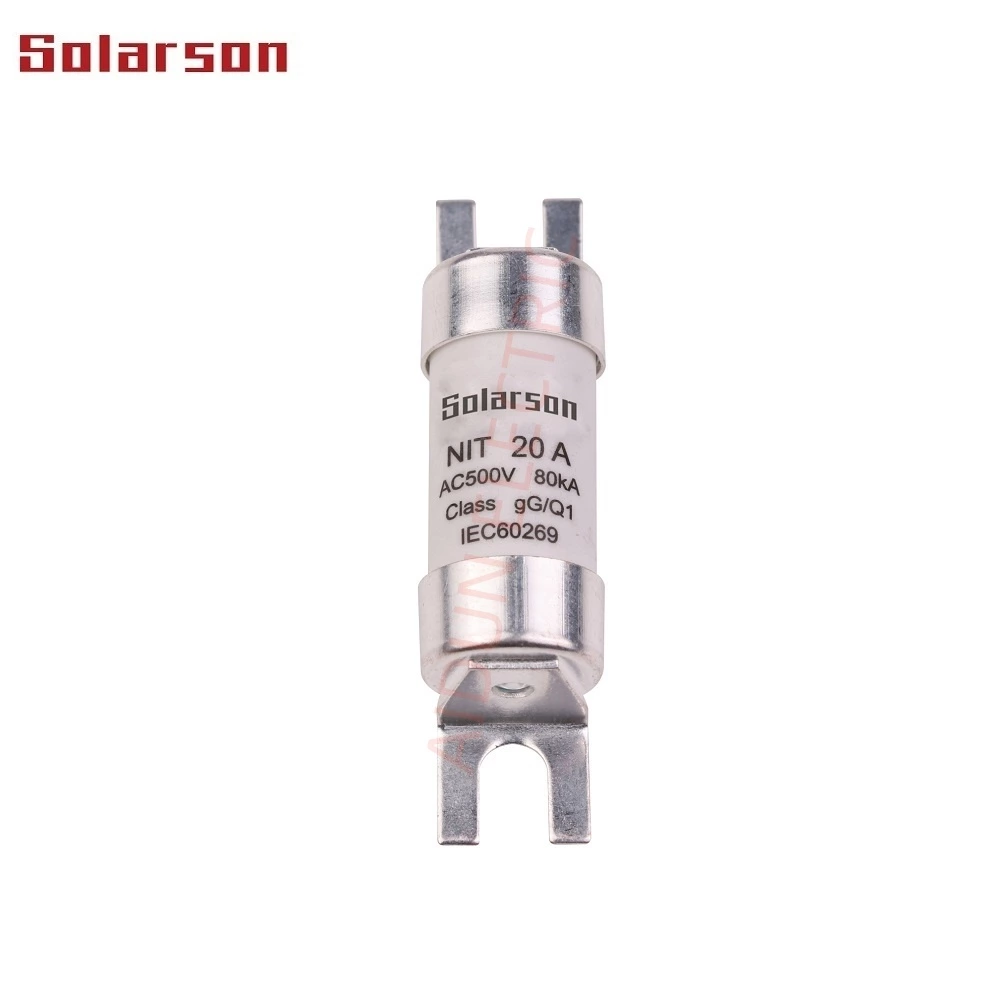

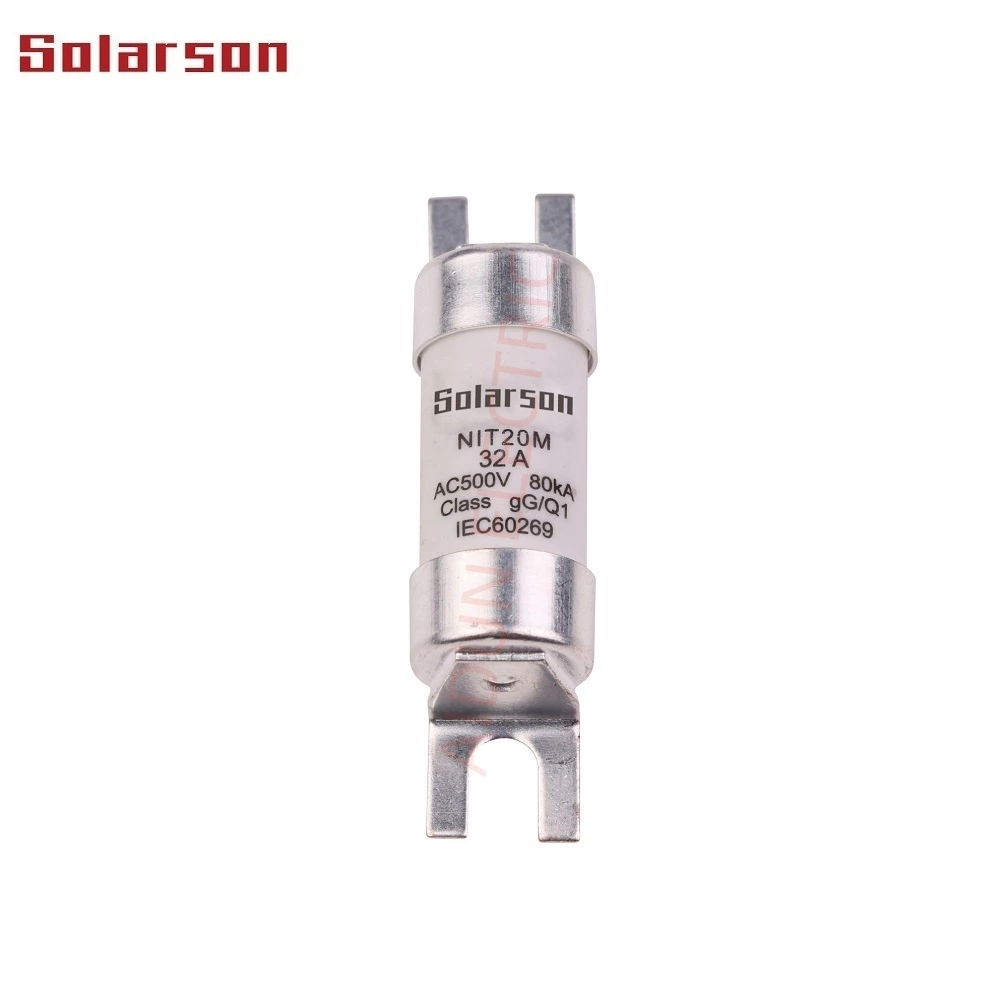

Offset Bolted Tags NIT Fuse 415VAC,550VAC / 2A,4A,6A,10A,16A,20A,25A,32A gL/gG
Offset Bolted Tags NIT Fuse 415V AC / 2A,4A,6A,10A,16A,20A,25A,32A
- Aidun Electric “Solarson” Brand Offset Bolted Tags NIT Fuse 415V Ac / 2 - 32A for general industrial applications
- with general purpose (gG) and motor protection (gM) characteristics
- Applications: General Industrial & Motors applications
Technical data
- Ampere Rating: 2A,4A,6A,10A,16A,20A,25A,32A
- Voltage Rating: 250VDC ,415VAC,550VAC
- Breaking capacity: 80kA.
- Class:gL/gG,gM,aM
- Standard:IEC 60269-2:2013/BS HD 60269-2:2013/BS 88-2:2013 (Fuse System E)
| No. |
Product type |
Competitor Part Number |
Rated Voltage(V) |
Rated current(A) |
Overall dimension (mm) |
| A |
B |
C |
ΦD |
E |
F |
H |
Φd |
| 18144 |
NIT |
NIT |
415 |
1~32 |
55 |
45 |
34 |
13.5 |
11 |
0.8 |
14.5 |
5 |
| 18145 |
TIS |
TIS |
500 |
40~100 |
88 |
75 |
56 |
25.5 |
13 |
1.2 |
27 |
6.5 |
Dimension(mm)
