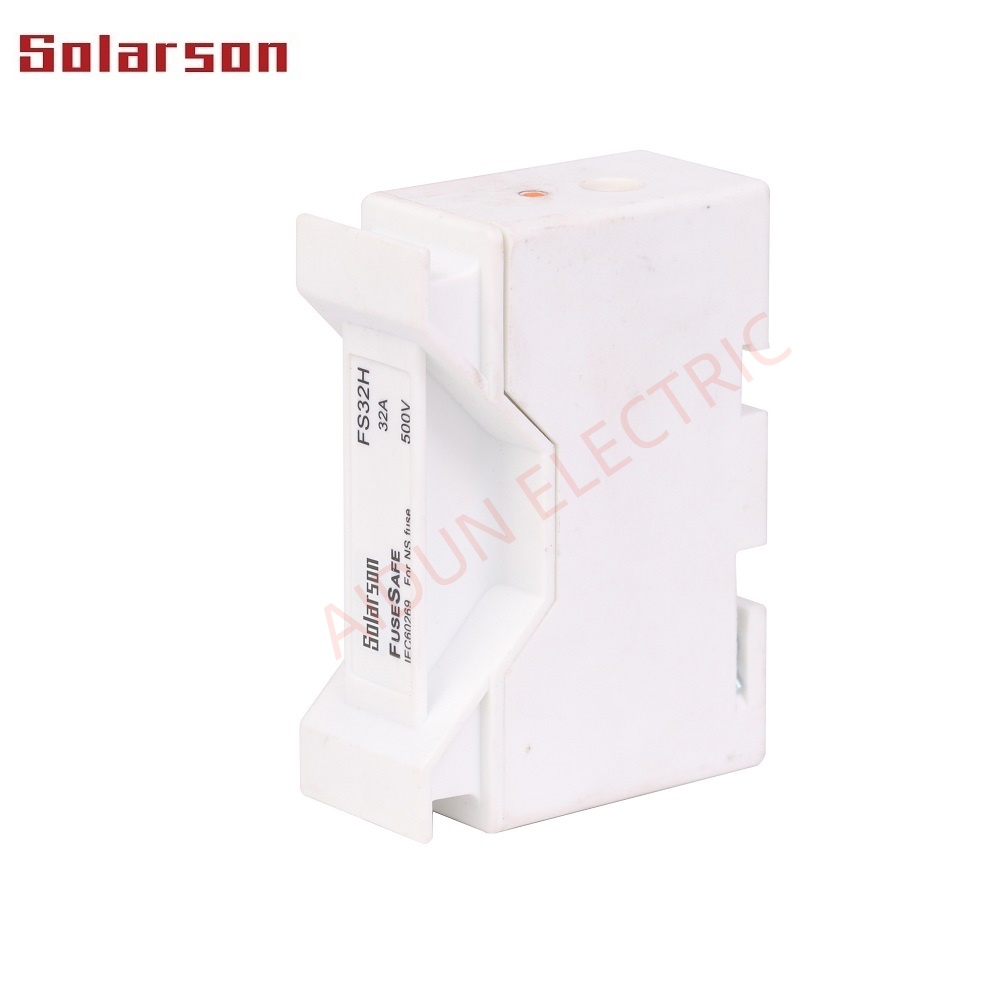

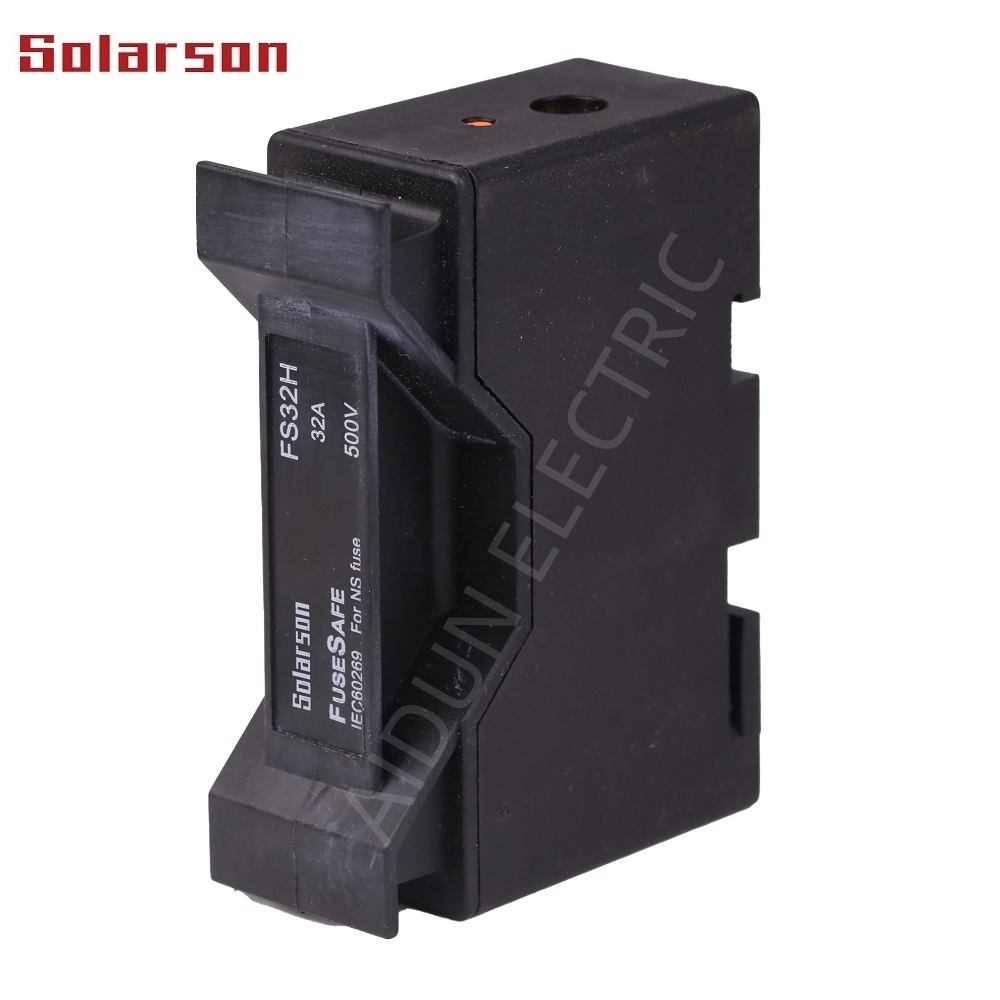

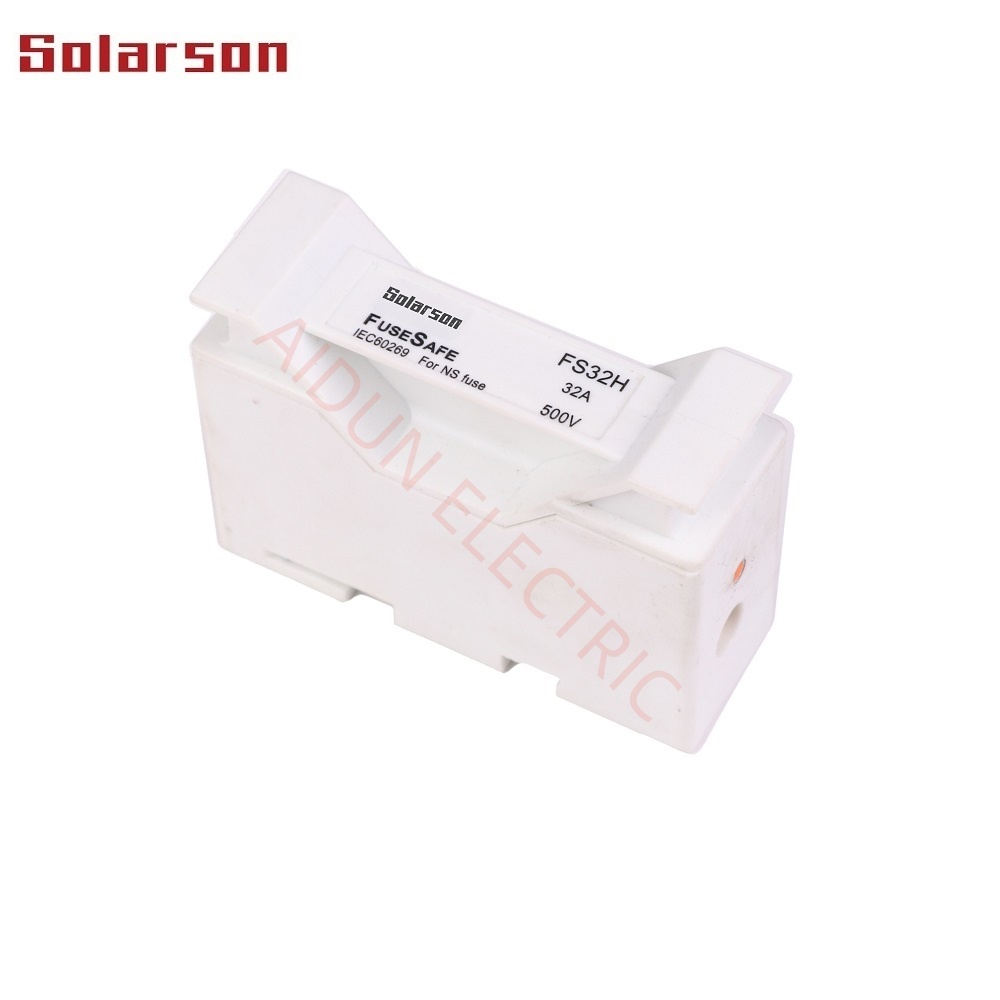

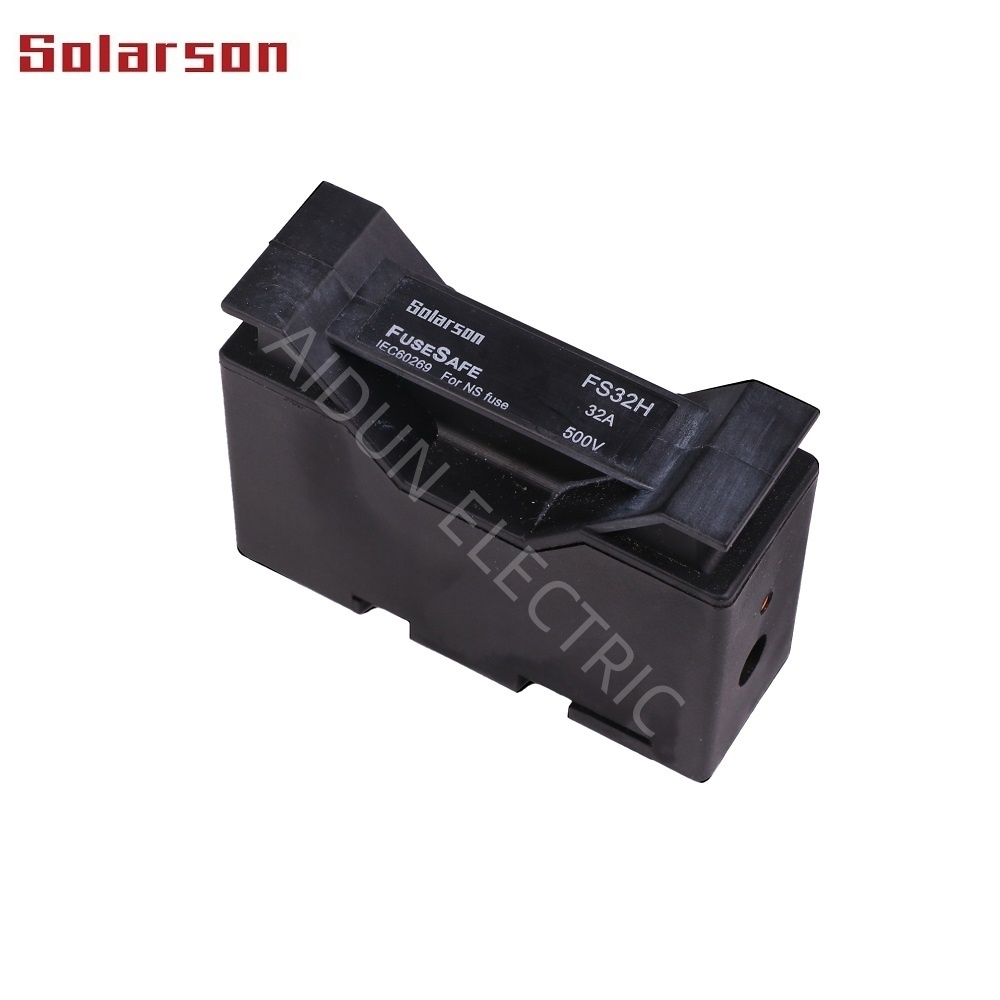

Australia Safeclip Fuse Fittings 32A
China Aidun Electric “Solarson” Brand 415V/500V Australia Safeclip Fuse Fittings 32A meet the standard IEC60269,AS60269,BS88,front wire and back wire,NSW instrusion barrier sealable versions,
made from flame retardant thermoplastic.
Technical data
- Type :FS20H,FS32BW,FS32H,FS32P,
- Ampere Rating: 20A-32A
- Voltage Rating: 415Vac/500VAC,690VAC
- Breaking capacity: 80kA.
- Class:gL/gG
- Standard:IEC60269,AS60269,BS88,
| No. | Product type | Rated Voltage(V) | Rated current(A) | Matched with fuse body measurement | Overall dimension (mm) |
| 18168 | FS20H | 415/500/550 | 20 | NS | Refer to for detailed data |
| 18169 | FS32H | 415/500/550 | 32 | NS | |
| 18170 | FS32BW | 415/500/550 | 32 | NS | |
| 18171 | FS32P | 415/500/550 | 32 | NS |
H means front wire,BW means back wire,P means stud rear
Dimensmon:
