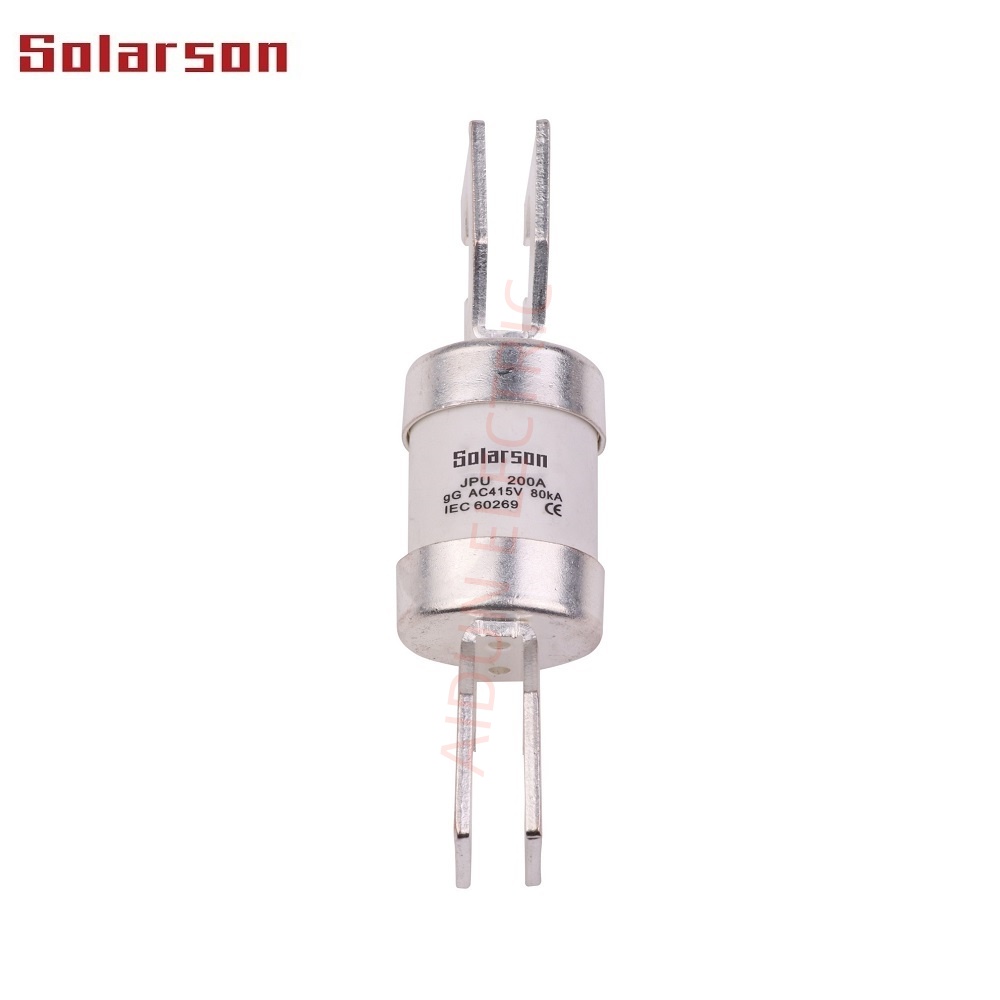

Slotted wedge JPU HRC fuse link 415V 500V 82mm fixing centres 63A,80A,100A,125A,160A,200A,250A,315A,355A,400A
Slotted wedge JPU HRC fuse link 82mm fixing centres 415V/500V
Aidun Electric “Solarson” Brand 415V/500V Slotted wedge JPU HRC fuse link 82mm for electricity supply networks comply with BS88: Part 5,meet the requirements of the corresponding draft IEC 60269-2 document and also comply with UK Electricity Supply Industry Standards. Fuse-links complying with the requirements of BS1361 are available for both
house service cut-outs and consumer units. In addition BS1362 domestic plug fuse-links are also available which meet the requirements of IEC60269-3.
Technical data
- Ampere Rating: 20A,32A,40A,50A,63A,80A,100A,125A,160A,200A,250A,315A,355A,400A
- Voltage Rating: 415Vac/500VAC/690VAC
- Breaking capacity: 80kA.
- Class:gL/gG,aM
- Standard:IEC60269,EN60269,BS88,
| No. | Product type | Competitor Part Number | Rated Voltage(V) | Rated current (A) | Overall dimension (mm) | |||||
| A | B | C | D | F | G | |||||
| 18163 | JHU76 | JHU76 | 415/500 | 20-250 | 100 | 76 | 45 | 40 | 14 | 13 |
| 18164 | JPU82 | JPU82 | 415/500 | 20-400 | 111 | 82 | 45 | 40 | 14 | 17 |
| 18165 | JSU92 | JSU92 | 415/500 | 40-630 | 131 | 92 | 45 | 56 | 17 | 20 |
Dimension
