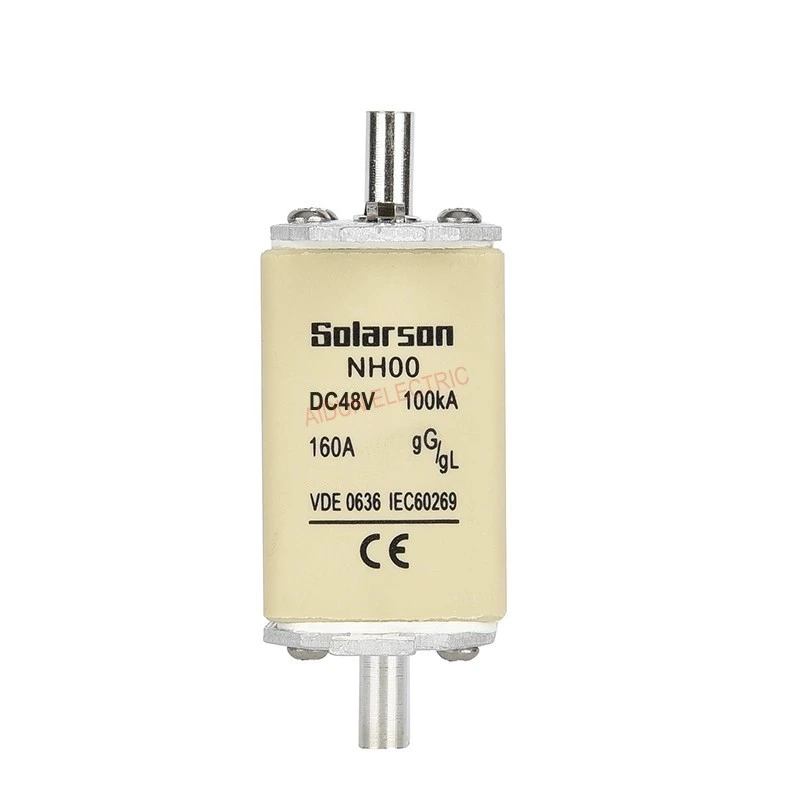

48VDC Battery protection fuse Disconnector switch 160A for NH00 fuse

48VDC Battery protection fuse  Disconnector switch  160A for NH00 fuse
48VDC Battery protection fuse  Disconnector switch  160A for NH00 fuse 48VDC Battery protection fuse  Disconnector switch  160A for NH00 fuse

Battery protection fuse  Disconnector 48VDC 160A for 48VDC NH00 fuse

Product description

China Aidun Electrical produce “SOLARSON”brand HR17 series NH00 Fuse Switch  Disconnector 48VDC  160A are specifically designed to be used with NH fuse links. All energised metal parts are fully protected against accidental contact. These are manually operated switches and the making and breaking is dependent on the speed of the operation

Technical data

  • Rated current of fuses :,10A, 16A,25A,30A,35A,40A,50A,63A,80A,100A,125A,160A
  • Rated voltage:48VDC/500VDC
  • Interupting capacity:DC 50kA
  • Operating class: gG/gL,gS
  • According to IEC/EN60269 and IEC/EN60947
No. Product type Rated Voltage(V) Rated current(A) Compatible Fuse Link Size Overall dimension (mm)
A B D E H
18056 HR17-160 48VDC 160 NH00 ,NH00C 202 106 83 208 65
18057 HR17-250 48VDC 250 NH1 240 184 115 290 114
18058 HR17-400 48VDC 400 NH2 288 210 126 335 130
18059 HR17-630 48VDC 630 NH3 300 250 135 350 162

Drawing
