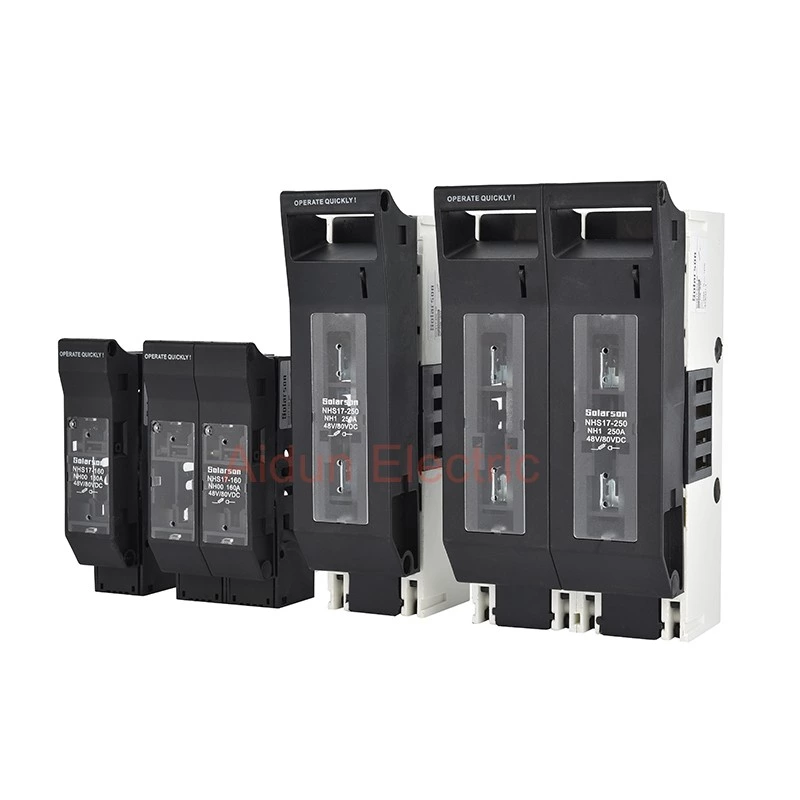

NHS17-630 500VDC Battery protection NH3 fuse Disconnector switch 1P 2P 3P 630A

NHS17-630  500VDC  Battery protection NH3 fuse  Disconnector switch 1P 2P 3P   630A

NHS17-630 48VDC 500VDC Battery protection fuse  Disconnector switch 1P 2P 3P  630A for NH3 fuse

Product description

China Aidun Electrical produce “SOLARSON”brand NHS17-630  series NH3 Fuse Switch  Disconnector 48VDC 500VDC   630A are specifically designed to be used with NH3 battery protection  fuse links. All energised metal parts are fully protected against accidental contact. These are manually operated switches and the making and breaking is dependent on the speed of the operation

Technical data

  • Rated current of fuses :,160A,200A,250A,315A,355A,400A,500A,630A
  • Rated voltage:48VDC/500VDC
  • Interupting capacity:DC 50kA
  • Operating class: gG/gL,gS
  • According to IEC/EN60269 and IEC/EN60947
