NHS17-160 48VDC 500VDC Battery protection fuse Disconnector switch 1P 2P 3P 160A for NH00 fuse
Product description
China Aidun Electrical produce “SOLARSON”brand NHS17-160 series NH00 Fuse Switch Disconnector 48VDC 160A are specifically designed to be used with NH00 battery protection fuse links. All energised metal parts are fully protected against accidental contact. These are manually operated switches and the making and breaking is dependent on the speed of the operation

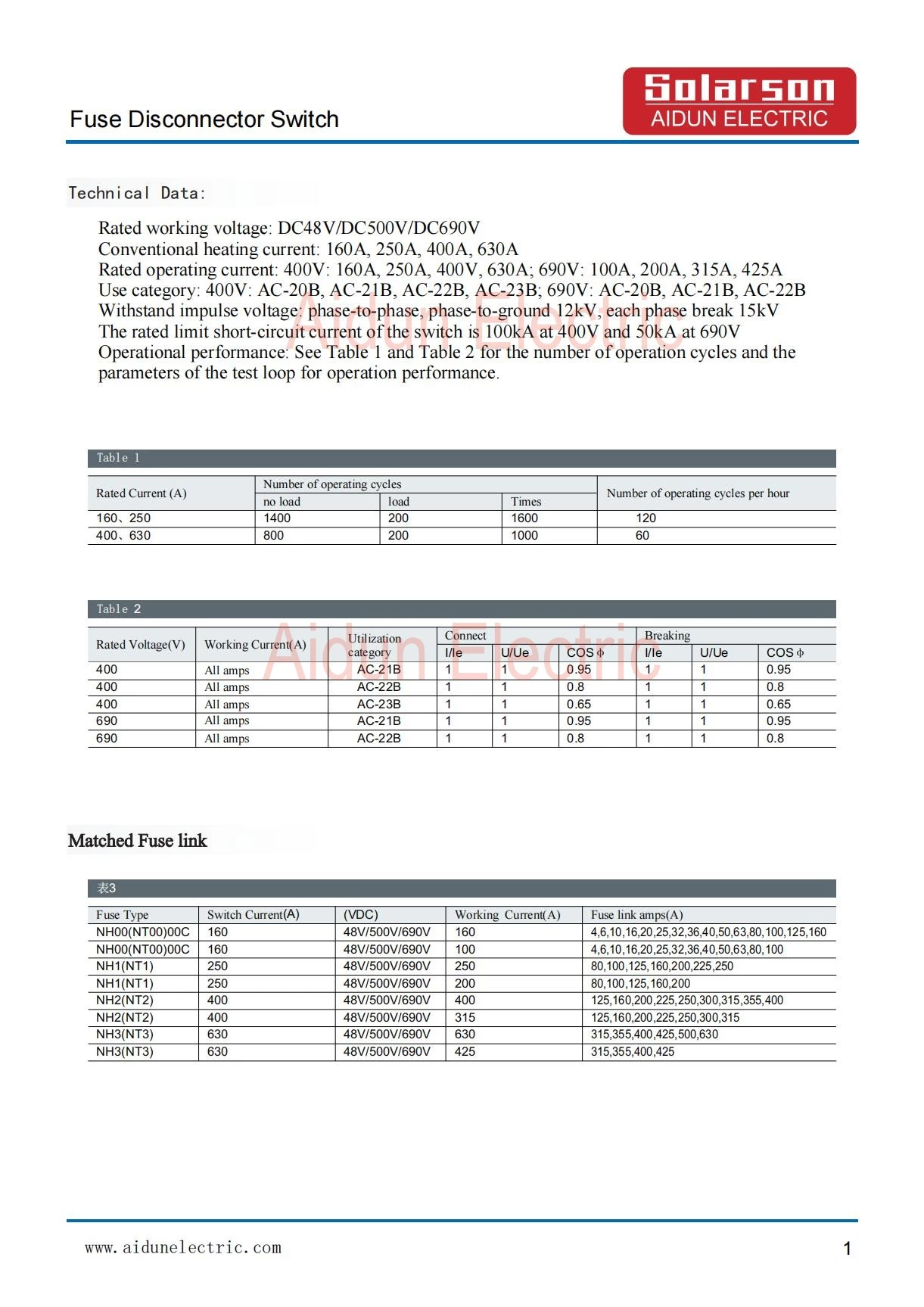

Technical data
- Rated current of fuses :,10A, 16A,25A,30A,35A,40A,50A,63A,80A,100A,125A,160A
- Rated voltage:48VDC/500VDC
- Interupting capacity:DC 50kA
- Operating class: gG/gL,gS
- According to IEC/EN60269 and IEC/EN60947
