8X31.5mm 10X38mm SC Screw Fixing Fuse Holder

China Aidun Electrical produce “SOLARSON”brand RT14 series of 8X31.5mm 10X38mm SC Screw Fixing Fuse Holder are used for 22x58 size fuses ,the product made in China ,good quality with good price.
Rated current of fuse:1A, 2A ,3A ,4A,5A,6A,8A,10A,12A,15A,16A,120A,25A,30A
Rated voltage:500VAC 690VAC
Model:
RT14-20E RT14-25E
Contact Now

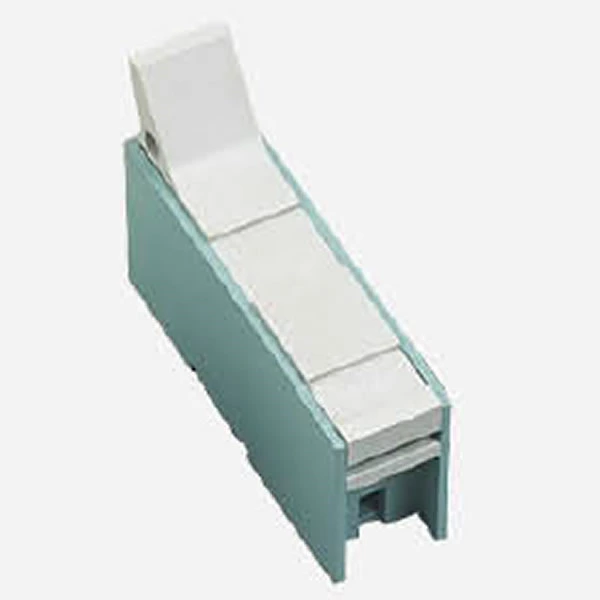

8X31.5mm 10X38mm SC Screw Fixing Fuse Holder

8X31.5mm 10X38mm SC Screw Fixing Fuse Holder

China Aidun Electric "Solarson" brand 8X31.5mm 10X38mm SC Screw Fixing Fuse Holder  are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in IEC version or IEC + UL version.

Technical data

  • Rated current of fuse:1A, 2A ,3A ,4A,5A,6A,8A,10A,12A,15A,16A,120A,25A,30A
  • Rated voltage:500VAC 690VAC 500V DC
  • Rated breaking capacity:120kA
  • Operating class :gL/gG,aR,time delay,aM
  • According to IEC/EN60269-6 IEC 60947-3 and UL248

No.

Product type

Compatible Fuse Link Size

Rated Voltage(V)

Rated current(A)

Overall dimension (mm)

18128

RT14-25E

10.3x38

400/500

25

Refer to for detailed data

18129

RT14-20E

8.5x31.5

400/500

20

Refer to for detailed data

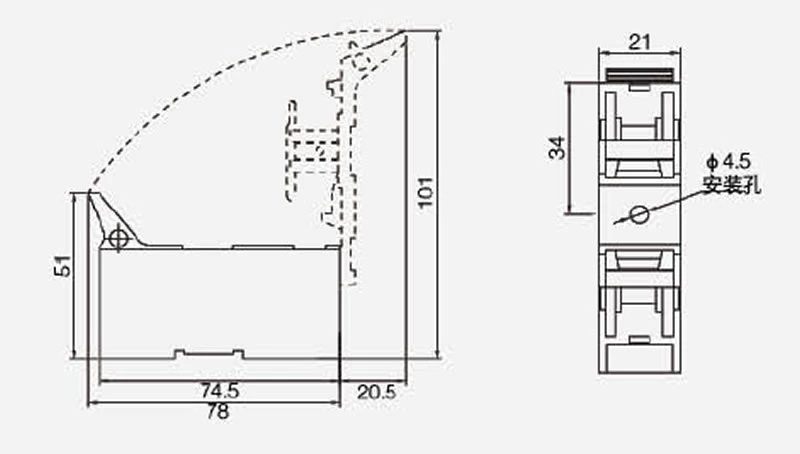

Dimension:

Dimension
