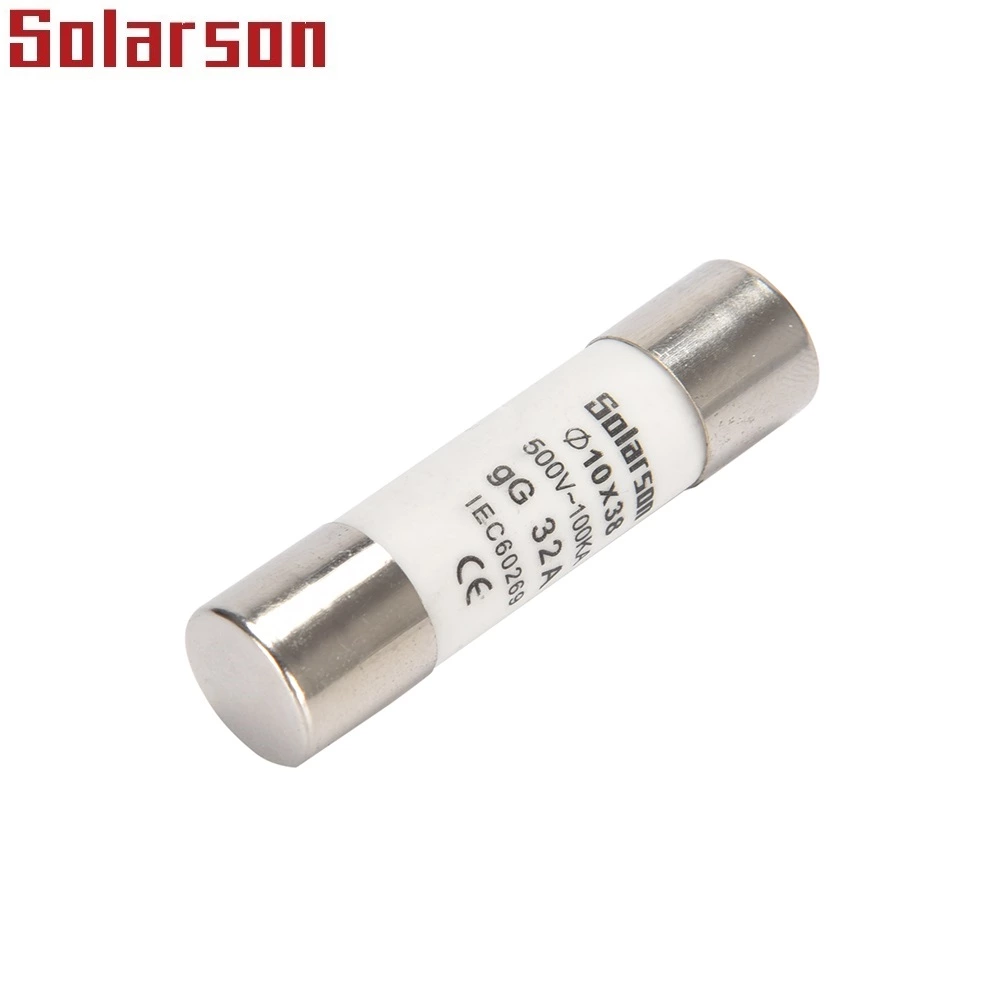

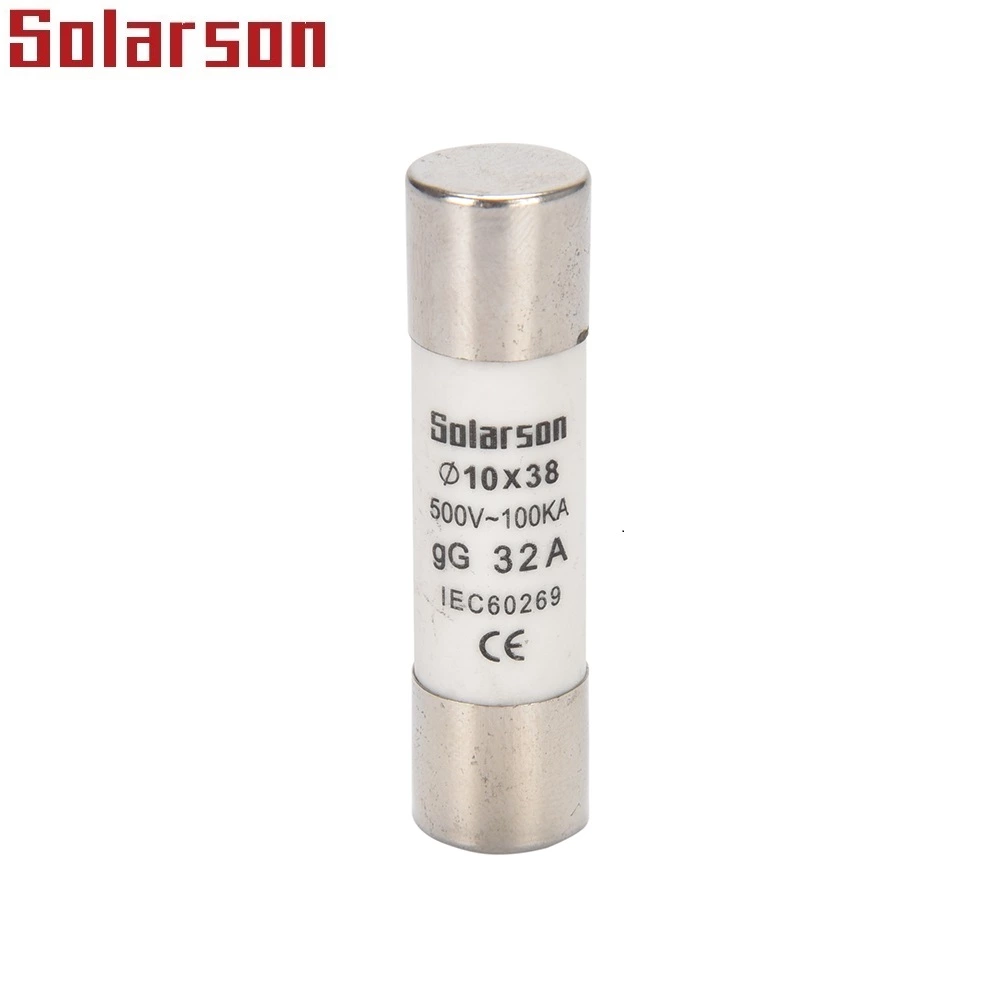

10x38 Midget Fuse 600V AC

China Yueqing Aidun Electrical produce “SOLARSON”brand SSPV series of 10x38 Midget Fuse 600V AC,the product made in China ,good quality with good price.
Rated voltage :600VAC
Rated Ampes: 1A, 2A ,3A ,4A,5A,6A,8A,10A,12A,15A,16A,120A,25A,30A
Class:gPV
Model:
R015
Contact Now
10x38 Midget Fuse 600V AC

10x38 Midget Fuse  600V AC

Aidun Electric “Solarson” Brand 10x38 Midget Fuse  600V AC class gG/ gL and aM fuse links are suitable for industrial applications.

  • Ampere Rating: 0.25 to 32A
  • Voltage Rating: 380Vac,500VAC, 600V AC,690VAC
  • Breaking capacity: 100kA.
  • Standard:IEC60269,Ul248
Item No. Product type ФD×L Rated Voltage (V) Rated current (A)   Drawing Weight (g)

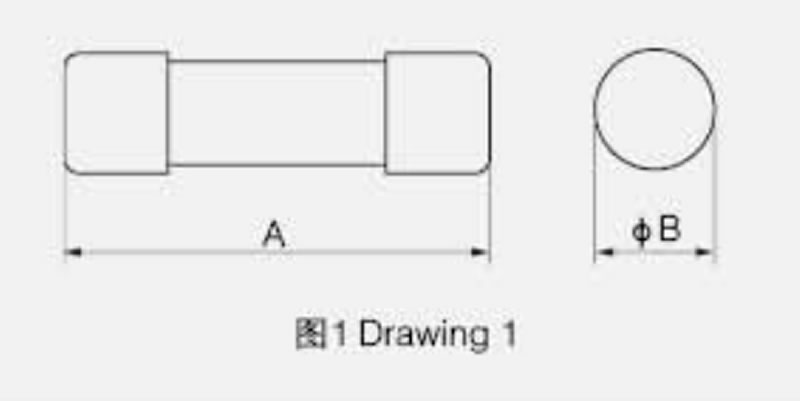

18071 R015  Ф10.3×38 500/600/690 0.5~32 Drawing 1 7.5

Drawing:

Drawing

Item Product type Matched with fuse link size Rated Voltage(V) Rated Current(A) Drawing No.

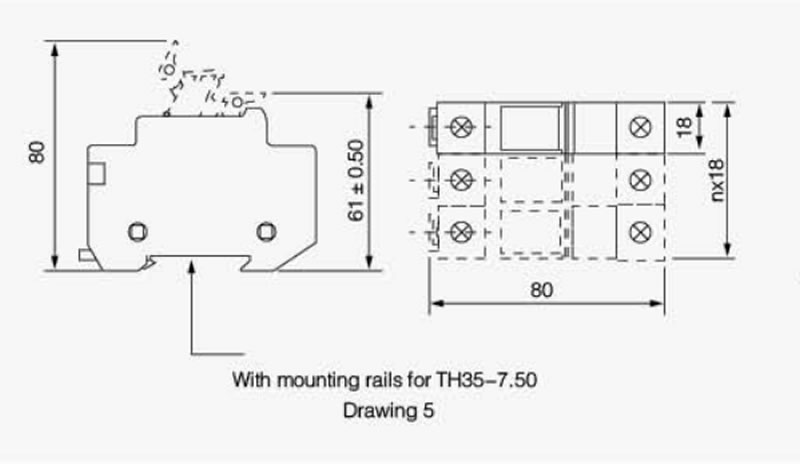

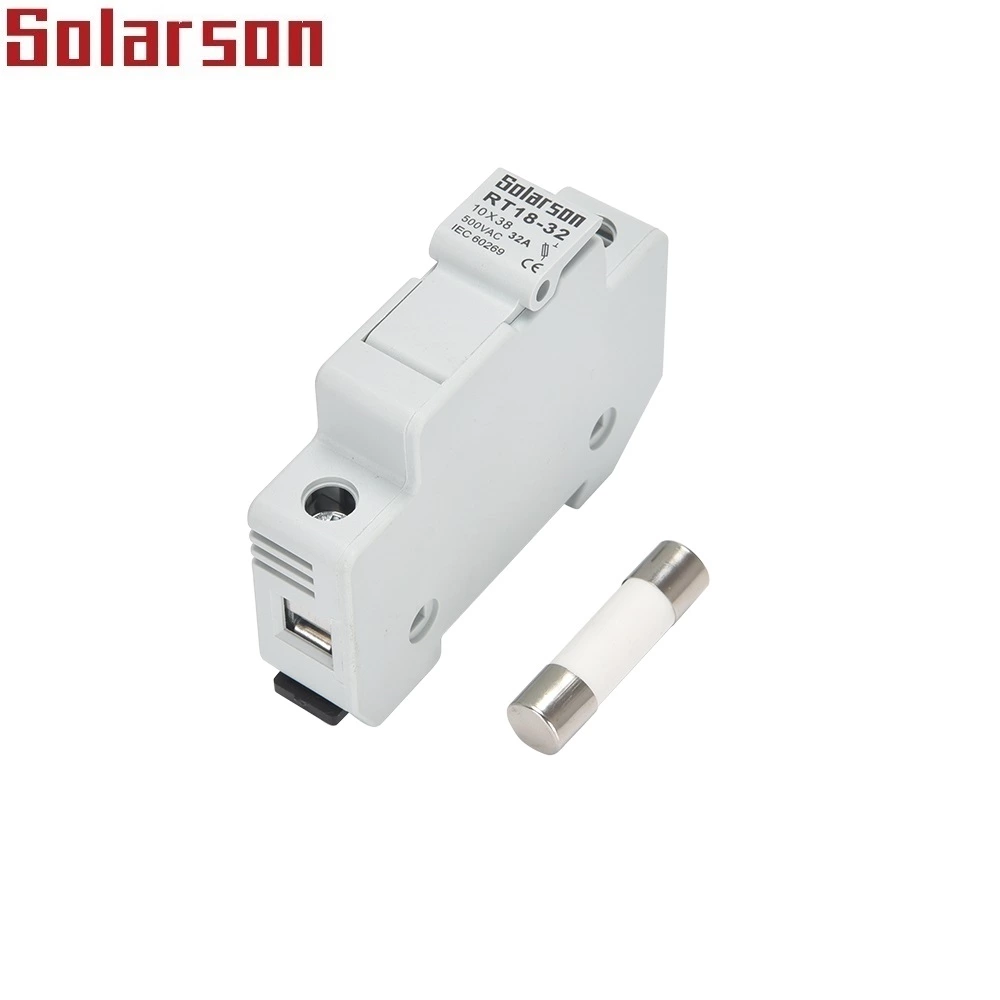

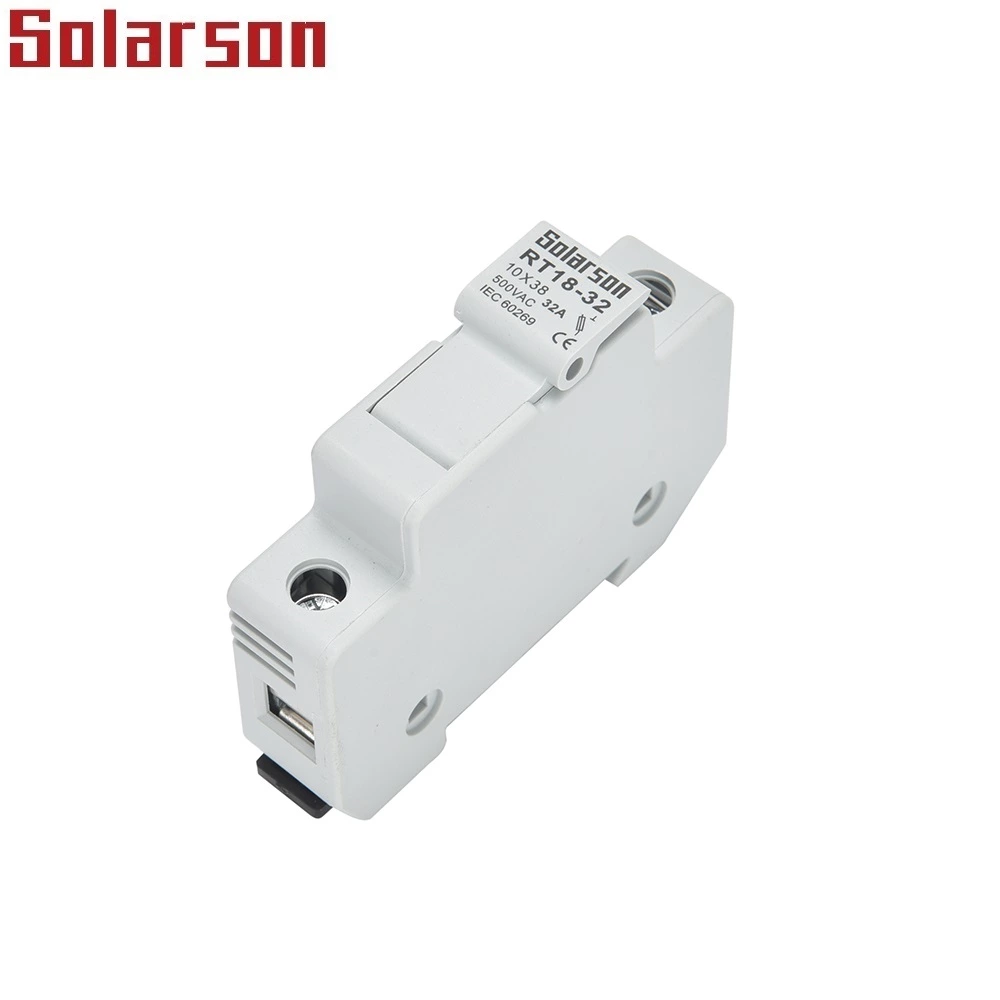

005 SSPV-30 10X38 600VDC 32 Drawing 5
SSPV-30X 10X38 600VDC 32
006 Fuse clip 10X38 10X85 600VDC 32 Drawing 6

Dimension:

Dimension
