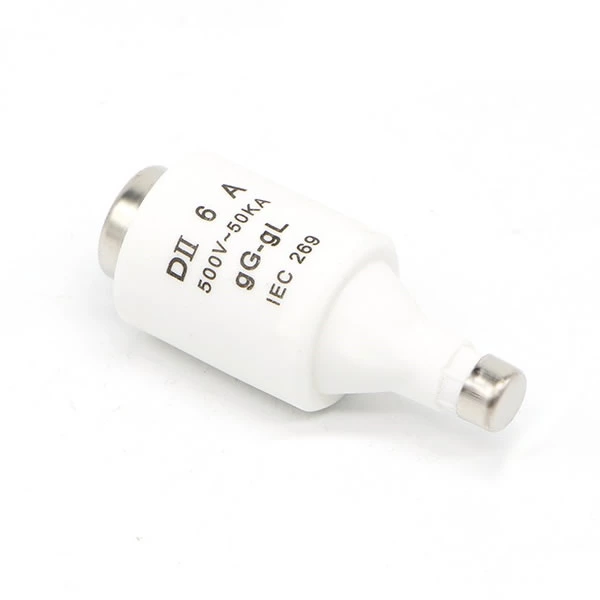

DIN Diazed DII fuse link 500V Up To 25A
Product description

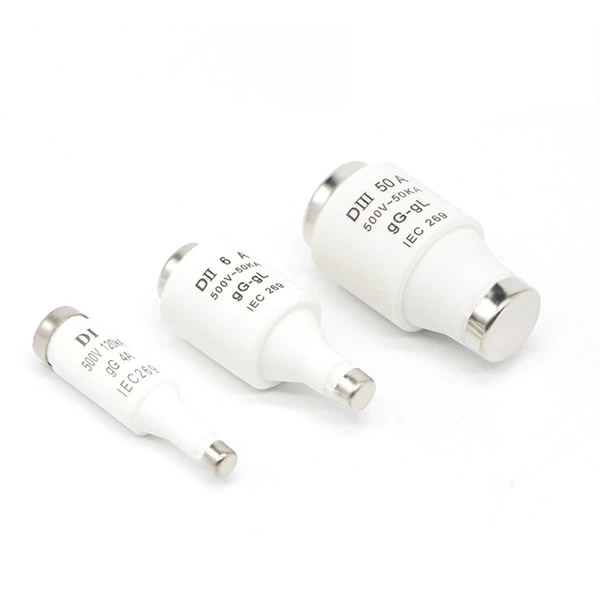

China Aidun Electrical produce “SOLARSON” brand D and D0 fuse links are specifically designed for the protection of general industrial applications such as power distribution and cable protection. Both types D and D0 are available in three operating characteristics: Time-delay, Fast-acting and Ultra-rapid versions that fit into screw cap fuse link carriers for mounting in 1- or 3-pole DIN-Rail or screw fixing.
Technical data
- Voltage: 400/500 V a.c.
- Ampere Rating: 2A,4A,5A,6A,8A,10A,12A,15A,16A,20A,25A
- Breaking capacity: 50 kA
- Operating class :gL/gG,aR,time delay
- Standards：IEC/EN60269 and DIN 49515
| No. | Product type | Competitor Part Number | Rated Voltage(V) | Rated current(A) | Overall dimension (mm) | |||
| A | ΦD1 | ΦD2 | ΦD3 | |||||
| 18130 | DI | R024 E16 5SA | 400/500 | 2-6 | 50 | 12.5 | 11.3 | 6 |
| 10 | 50 | 12.5 | 11.3 | 8 | ||||
| 16 | 50 | 12.5 | 11.3 | 10 | ||||
| 20-25 | 50 | 12.5 | 11.3 | 12 | ||||
| 18131 | DII | R021 5SB E27 RL6-25 | 400/500 | 2~6 | 50 | 22 | 13 | 6 |
| 8-10 | 50 | 22 | 13 | 8 | ||||
| 13 | 50 | 22 | 15 | 8 | ||||
| 16 | 50 | 22 | 15 | 10 | ||||
| 20 | 50 | 22 | 15 | 12 | ||||
| 25 | 50 | 22 | 15 | 14 | ||||
| 18132 | DIII | R022 5SB E33 RL6-63 | 400/500 | 30-40 | 50 | 27 | 20 | 16 |
| 50 | 50 | 27 | 20 | 18 | ||||
| 63 | 50 | 27 | 20 | 20 | ||||
Dimension
