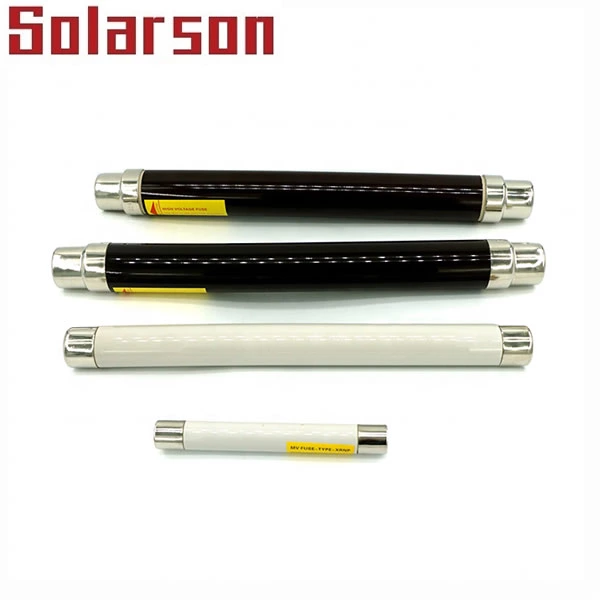

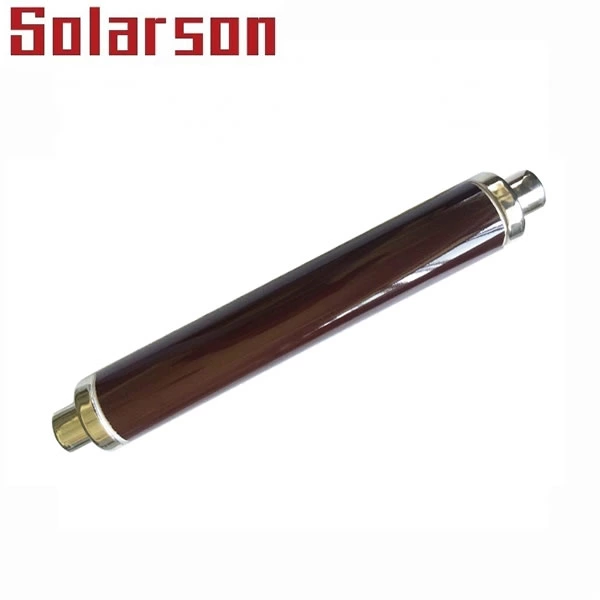

DIN 3.6KV 3.6WDOSJ HRC High Voltage Motor Fuse Link
China Aidun Electric “Solarson”brand DIN 3.6KV HRC High Voltage Motor Fuse Link 50,63, 71, 80, 100,125-400A are designed to meet the specific requirements necessary for motor protection.
During the starting cycle of direct on-line motors, the fuse elements will reach a considerably higher
temperature than during normal operation; (this is due to the the high amount of current the motor will draw as it starts,
typically, 6 times its normal load current value).
Available in DIN 43625 and BS2692 dimensions
Technical data
- Product type:3.6WDOSJ
- Ampere Rating: 25A,32A,40A,50A,63A,80A,100A,125A,160A,200A,250A, 315A, 355A, 400A
- Voltage Rating: 3.6KV
- Breaking capacity: 40kA.
- Class:gL/gG
- Standard:IEC60282,EN60282,IEC 282-1,BS2692-1
| No. | Products model | Competitor part number | Rated Voltage (kV) | Rated current (A) | Breaking capacity (kA) | Overall dimension | Weight (g) | |
| ΦD | L | |||||||
| 184161 | 3.6WDOSJ | 3.6WDOSJ | 3.6 | 50,63, 71, 80, 100,125 | 50 | 51 | 192 | 1.12 |
| 184171 | 3.6WFOSJ | 3.6WFOSJ | 3.6 | 160,200 | 50 | 76 | 192 | 2.1 |
| 184181 | 3.6WDLSJ | 3.6WDLSJ | 3.6 | 50,63, 71, 80, 100,125 | 50 | 51 | 292 | 1.63 |
| 184191 | 3.6WFLSJ | 3.6WFLSJ | 3.6 | 160,200,250,315,400 | 50 | 76 | 292 | 3.15 |
| 184201 | 7.2WFMSJ | 7.2WFMSJ | 7.2 | 25,32,40,50,63, 71, 80, 100,125,160 | 63 | 76 | 442 | 5.2 |
| 184211 | 7.2WKMSJ | 7.2WKMSJ | 7.2 | 200,250,315,355,400 | 63 | 76 | 442 | 5.2 |

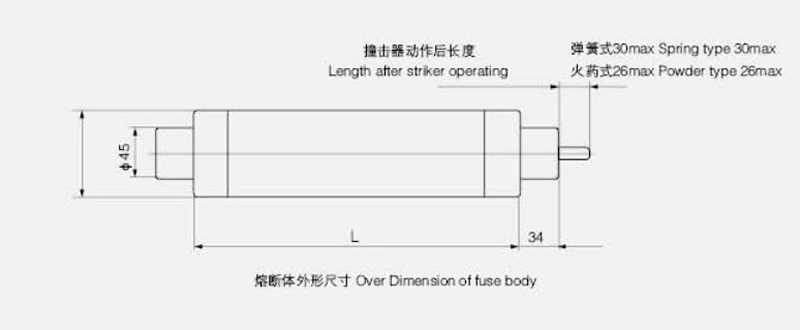

Dimension(mm):
