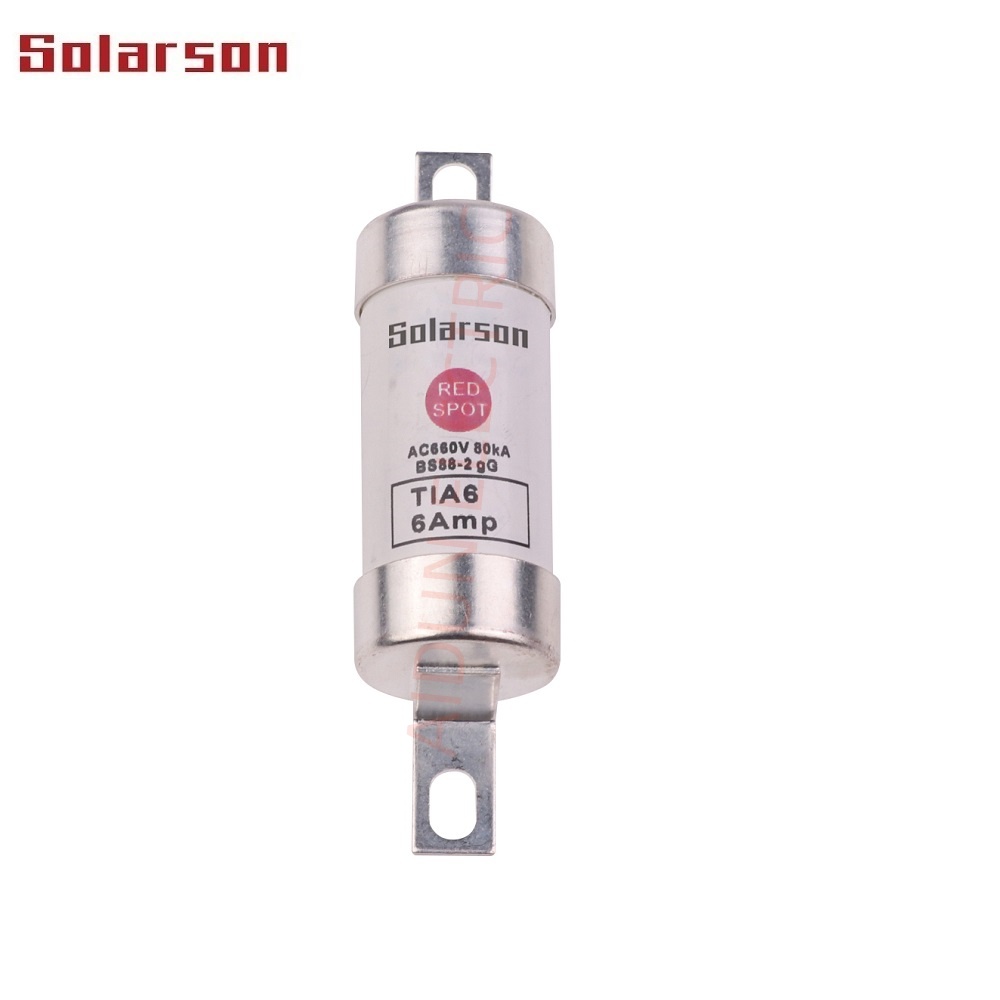

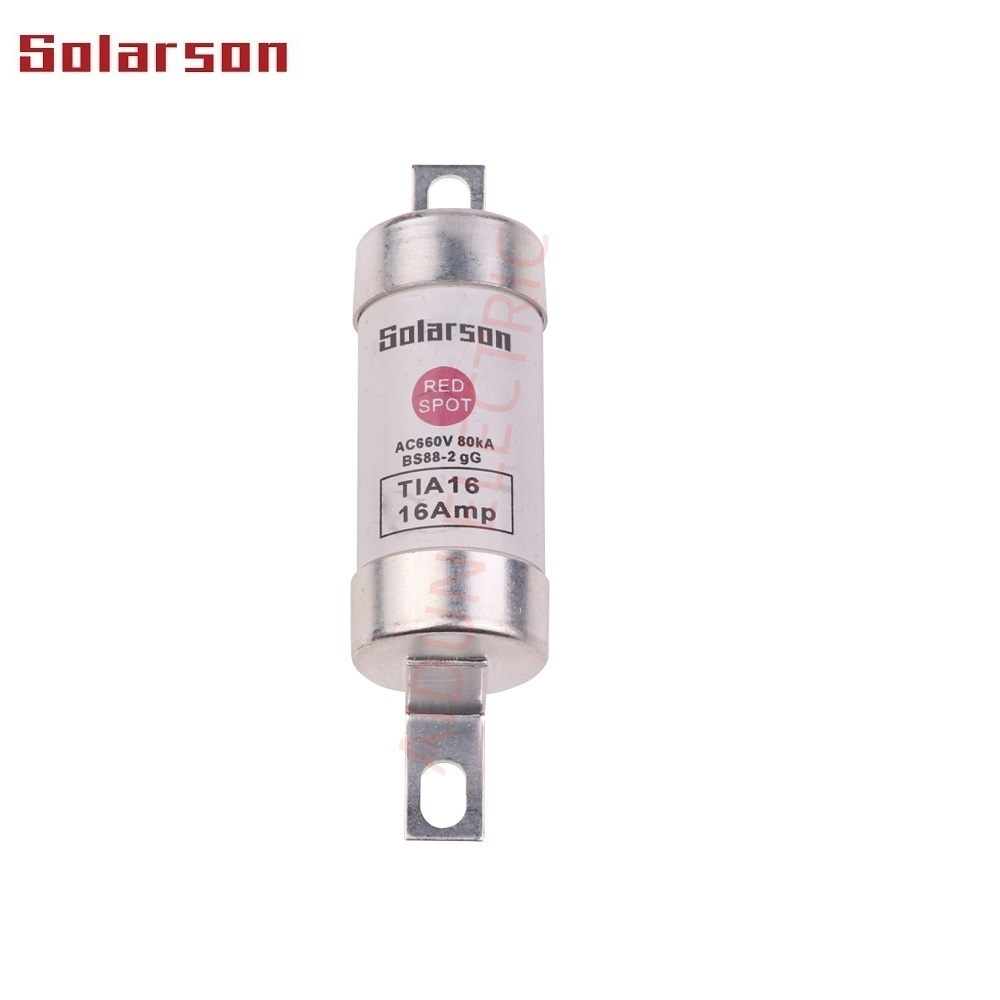

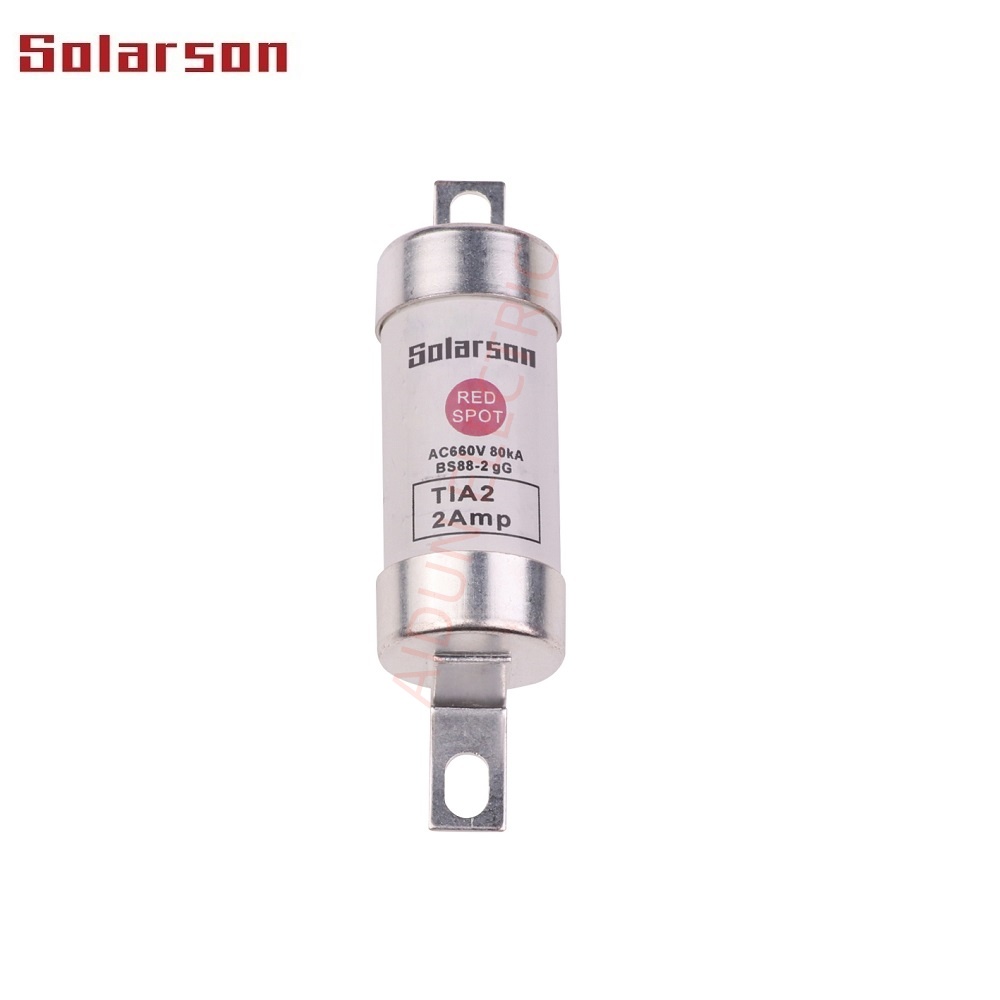

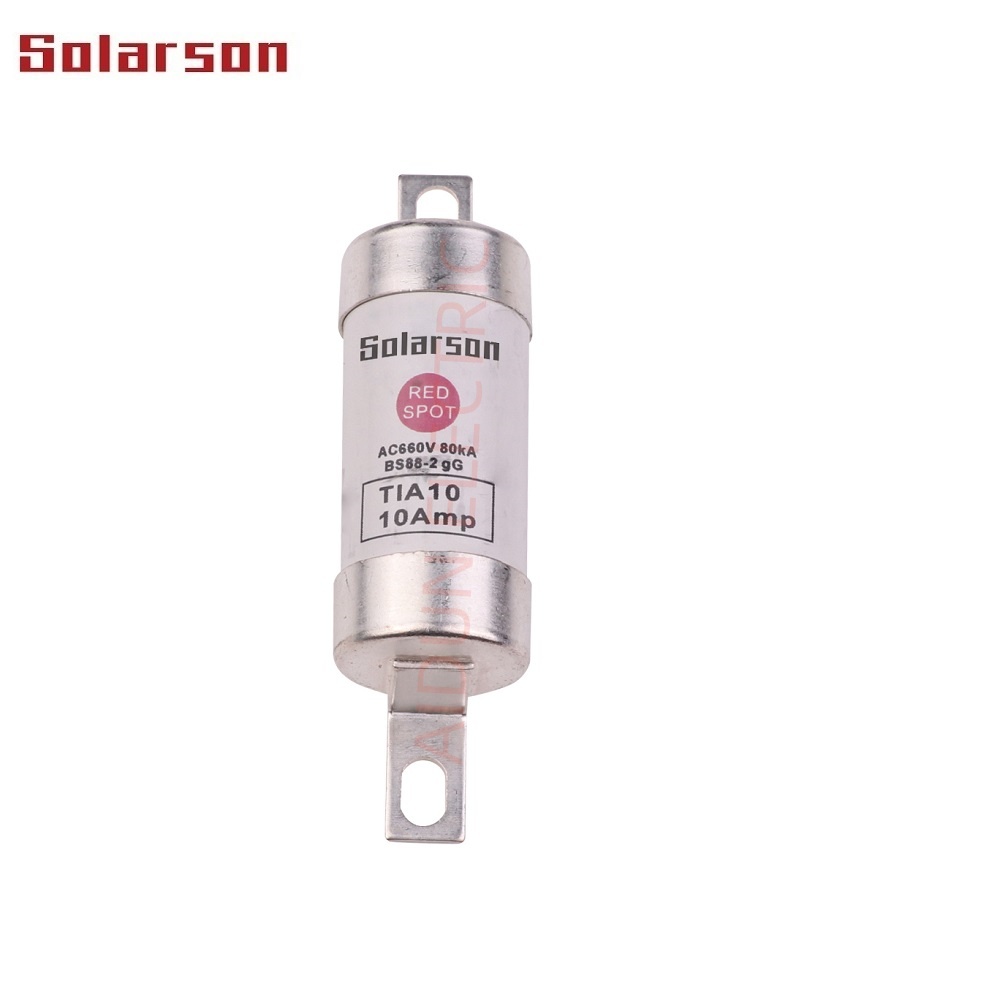

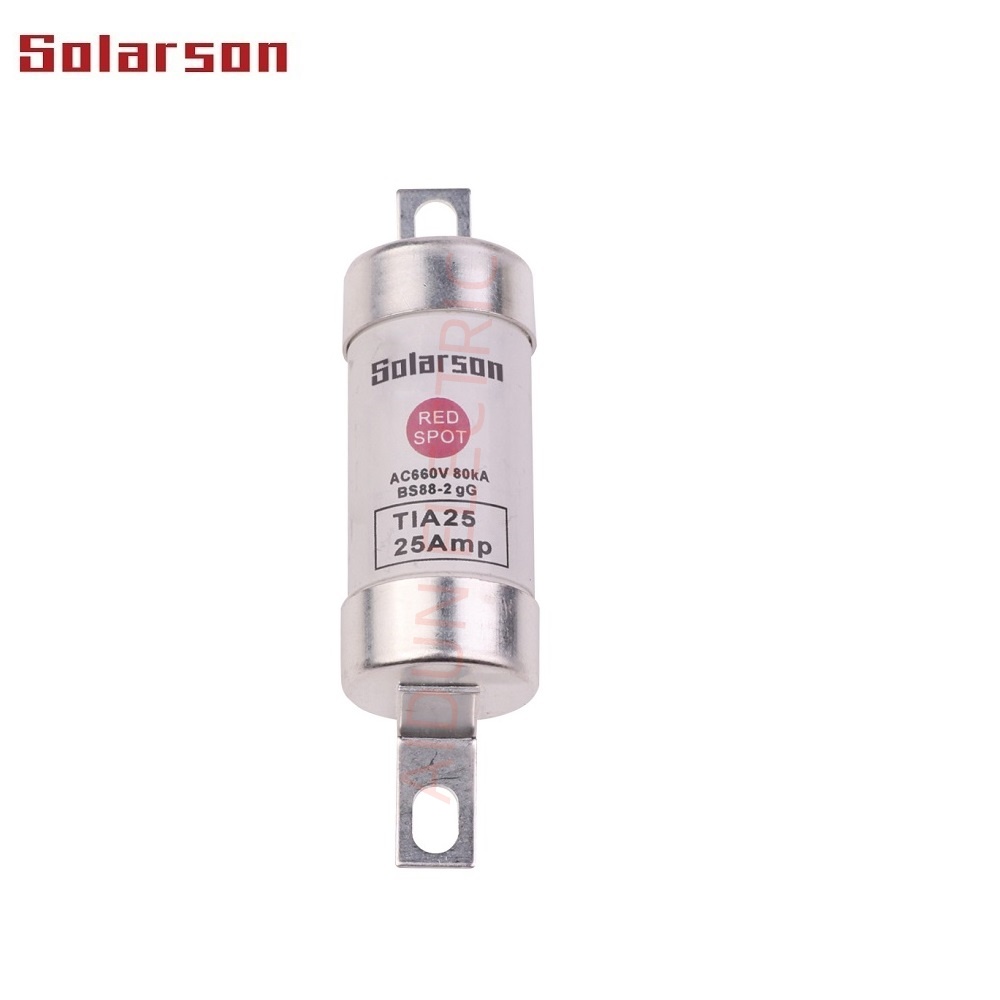

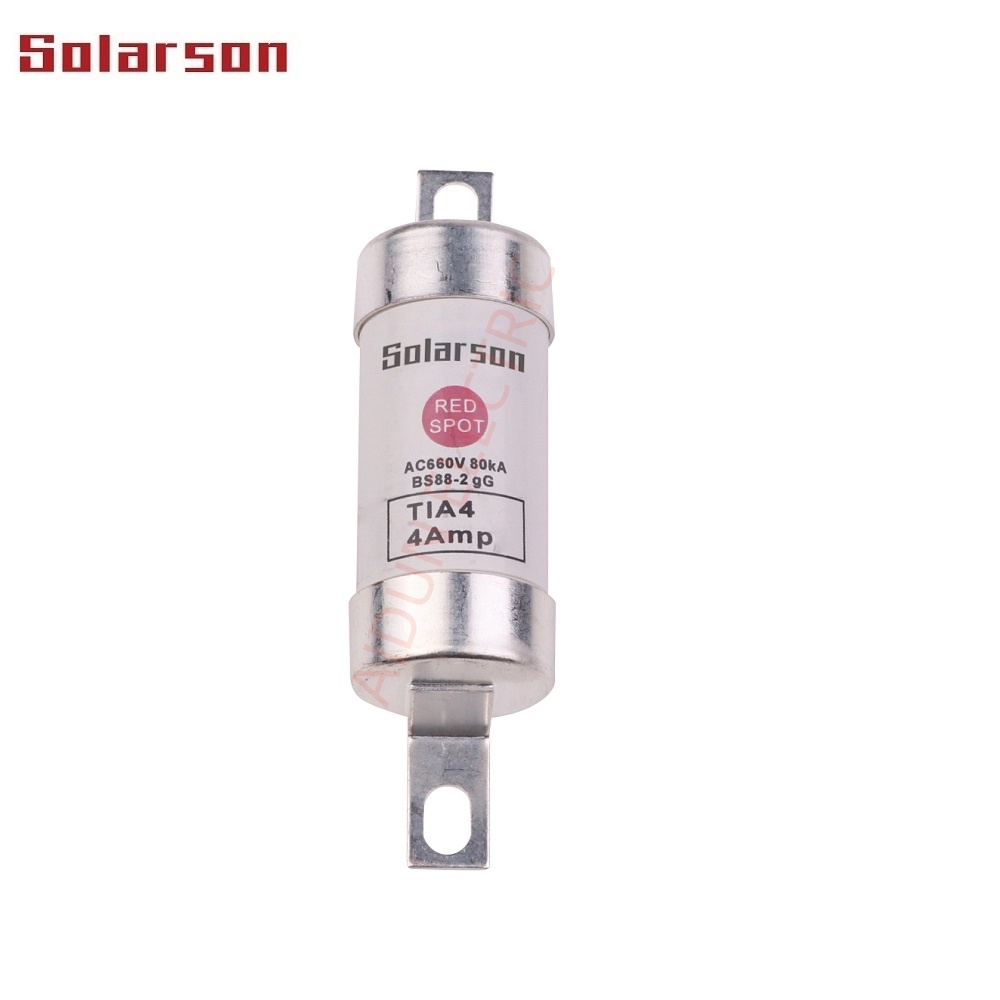

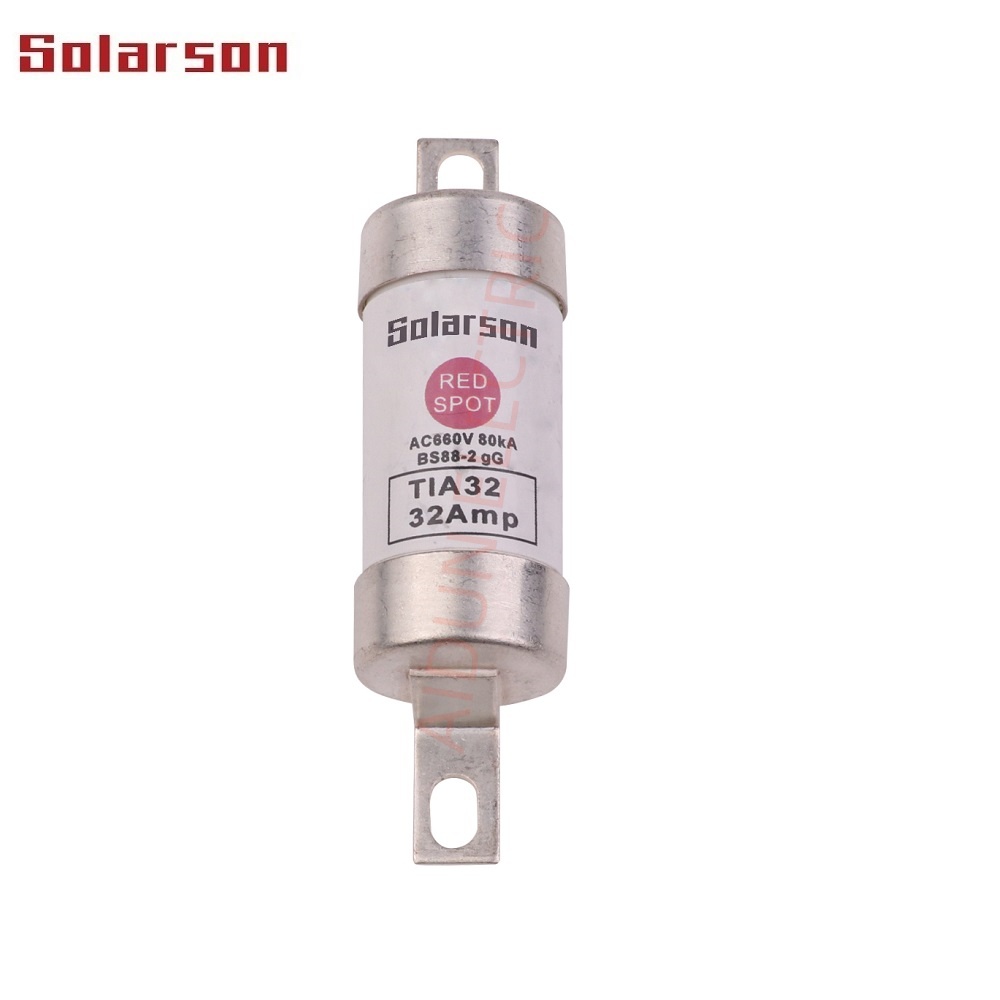

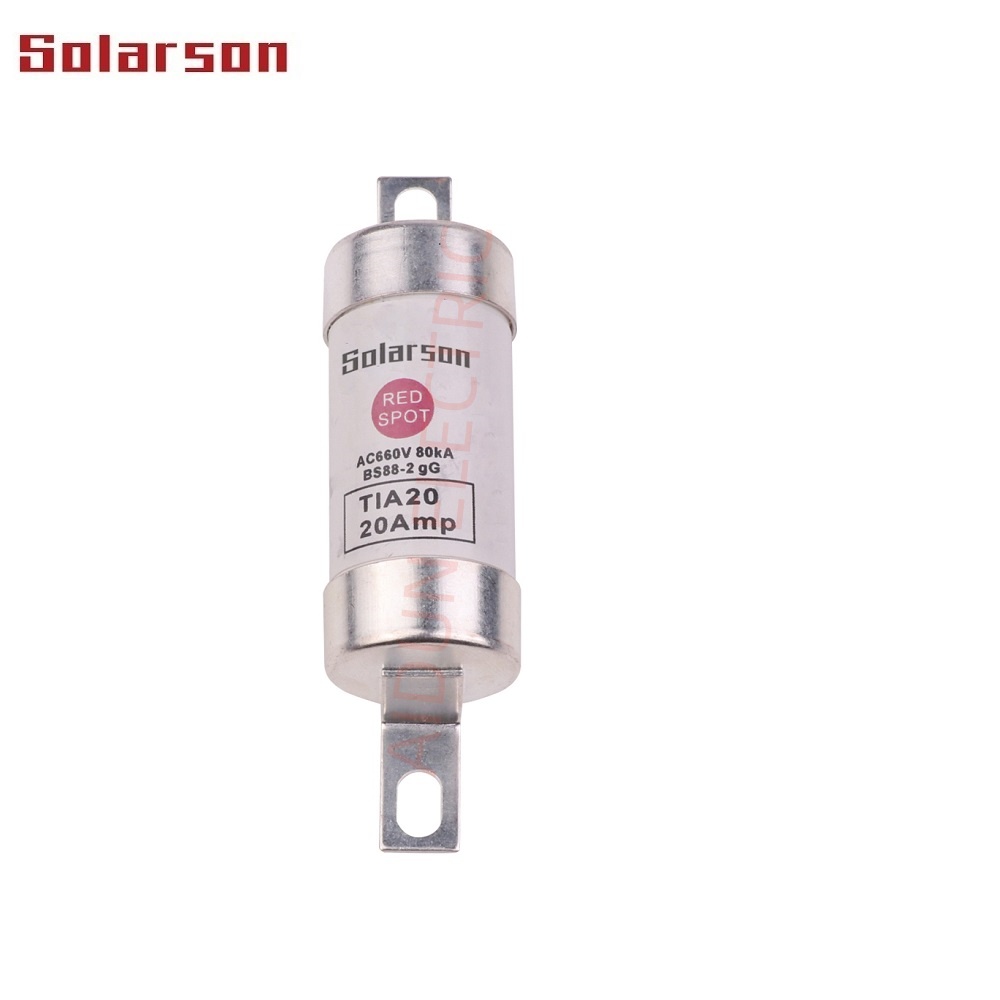

Offset Bolted Tags TIA Fuse 415V Ac / 2 - 32A

China Aidun Electric “Solarson” BrandOffset Bolted Tags TIA Fuse 415V Ac / 2 - 32A for for general Industrial & Motors applications comply with BS88 .the product made in China ,good quality with good price.
Ampere Rating: 2A,4A,6A,10A,16A,20A,25A,32A
Voltage Rating: 240VAC ,415V,550V
Class:gL/gG,gM,aM
Standard:IEC60269,BS88
Model:
TIA
Contact Now
Offset Bolted Tags TIA Fuse 415V Ac / 2 - 32A

Offset Bolted Tags NIT Fuse 415V Ac / 2 - 32A

  • Aidun Electric “Solarson” Brand Offset Bolted Tags NIT Fuse 415V Ac / 2 - 32A for general industrial applications
  • with general purpose (gG) and motor protection (gM) characteristics
  • Applications: General Industrial & Motors applications

Technical data

  • Ampere Rating: 2A,4A,6A,10A,16A,20A,25A,32A
  • Voltage Rating:  240VAC ,415V,550V
  • Breaking capacity: 80kA.
  • Class:gL/gG,gM,aM
  • Standard:IEC60269,BS88,
No. Product type Competitor Part Number Rated Voltage(V) Rated current(A) Overall dimension (mm)
A B C ΦD E F H Φd
18144 NIT NIT 415 1~32 55 45 34 13.5 11 0.8 14.5 5
18145 TIS TIS 500 40~100 88 75 56 25.5 13 1.2 27 6.5

Dimension(mm)
